製品詳細

Features

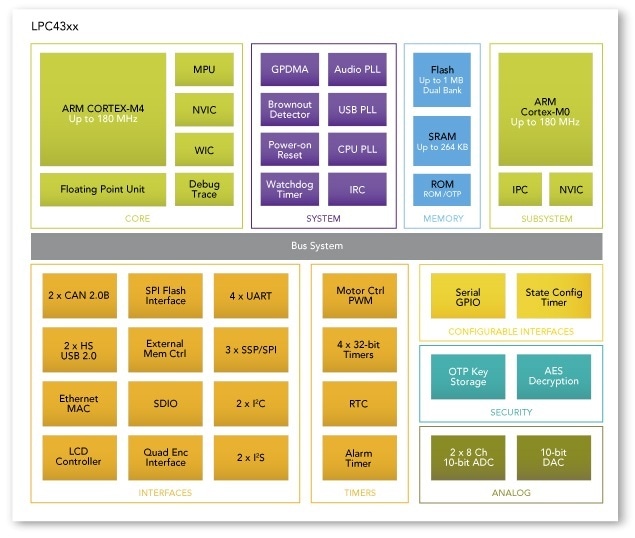

Processor

LPC4357

LBGA256

204 MHz Arm^® Cortex^®-M4 processor

Memory

On-Board Memory:

136 KB On-Chip SRAM
1 MB dual bank On-Chip Flash

Display

Color QVGA TFT LCD with touchscreen

Connectivity

10/100 Ethernet Port
High-speed USB 2.0 Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
Full-speed USB 2.0 Host/Device interface (USB host + micro USB Device connectors)
CAN interfaces
Serial/UART Port
MicroSD Card Interface

Sensor

Digital Temperature Sensor (I2C)

Power Management

Analog Voltage Control for ACD Input

Audio

Audio codec with Line-In/Out and Microphone/headphone connector + Speaker

Debug

Debug Interface Connectors

20-pin JTAG (0.1 inches)
10-pin Cortex debug (0.05 inches)
20-pin Cortex debug + ETM Trace (0.05 inch connector)

User Components

4 user push-buttons + reset

購入オプション

クリックして展開

OM13040
アクティブ

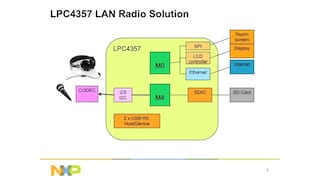

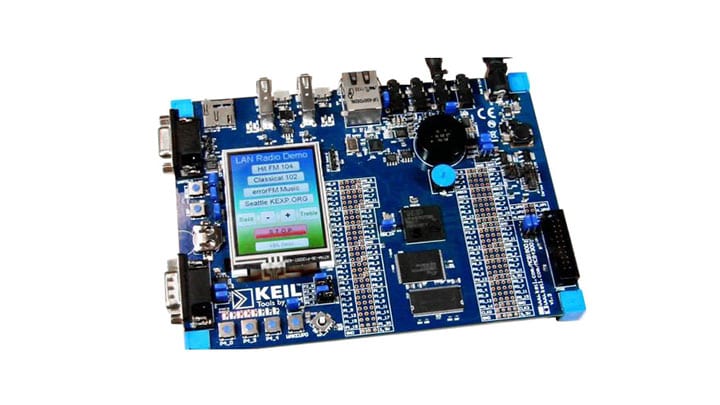

Keil MCB4357 Evaluation Board and Internet Radio Solution.
