This solution is composed of two NXP ICs, the NHS3100 NTAG SmartSensor and the SL354011FHK; connected via I2C. The NHS3100 is the leader of the solution, running the temperature monitor and forwarding the state of the controlled goods to the Rain RfiD (UHF) interface. The logger is configured and started via the NFC interface. Full data readout also happens via NFC and can be uploaded via an NFC-enabled device to the cloud. Via the Rain RFiD interface, the package is identified via its NFC ID and a status indication is given. That state information can be as simple as a go / no go decision, or can be expanded to contain more information. For example - depending on the firmware - incident timing can be displayed as well.

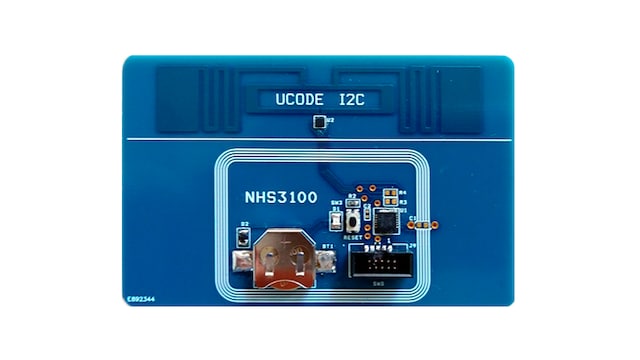

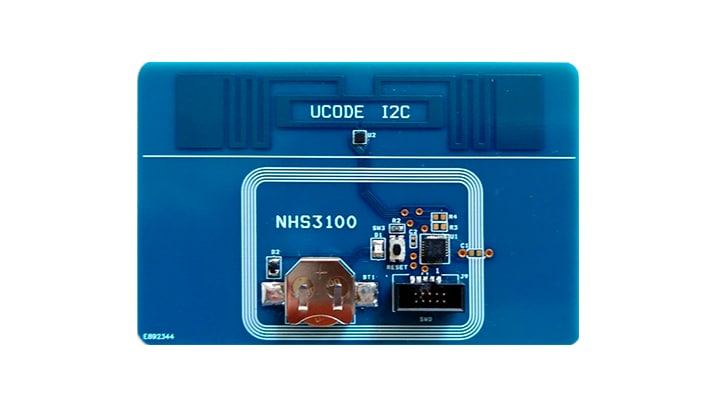

NHS3100 - UCODE-I2C.

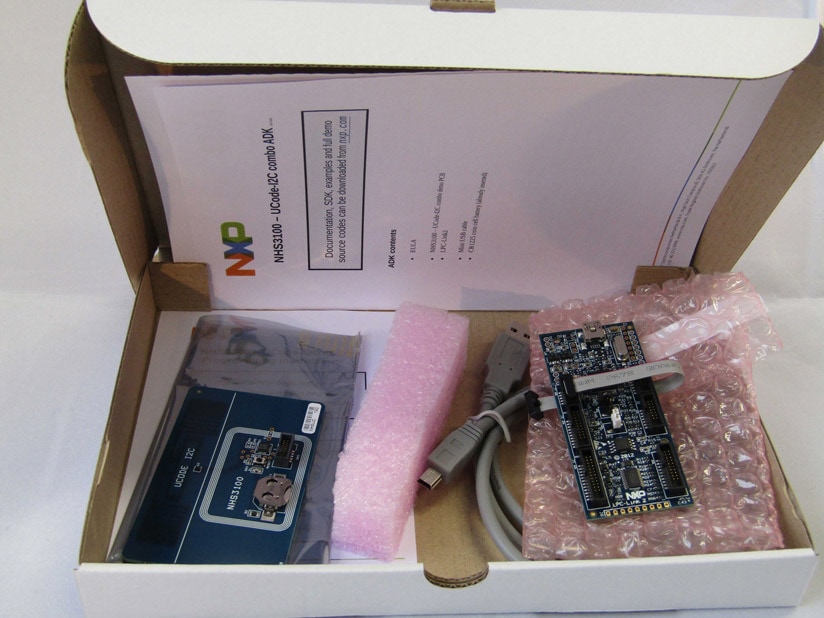

NHS3100 - UCODE-I2C.
