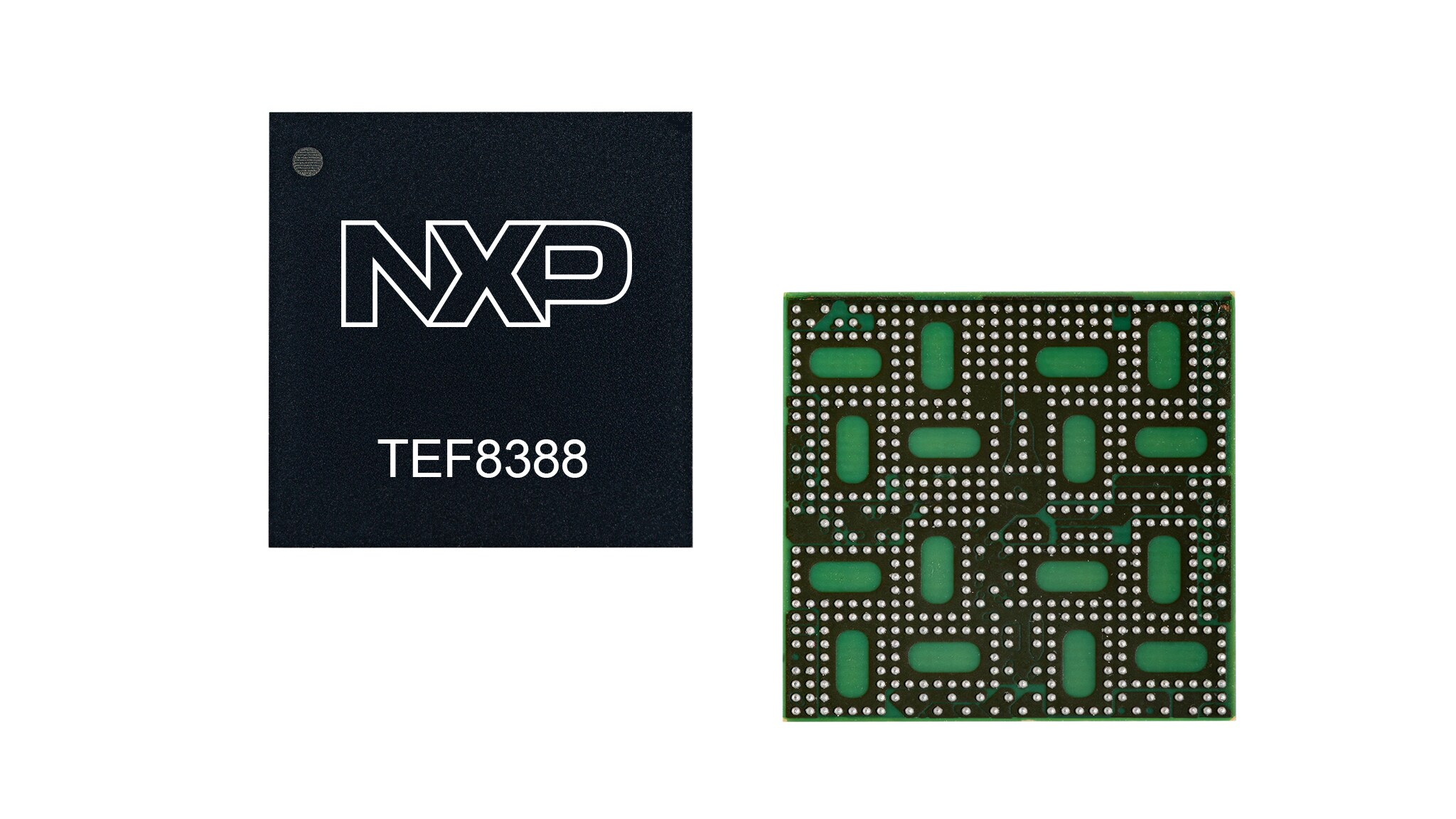

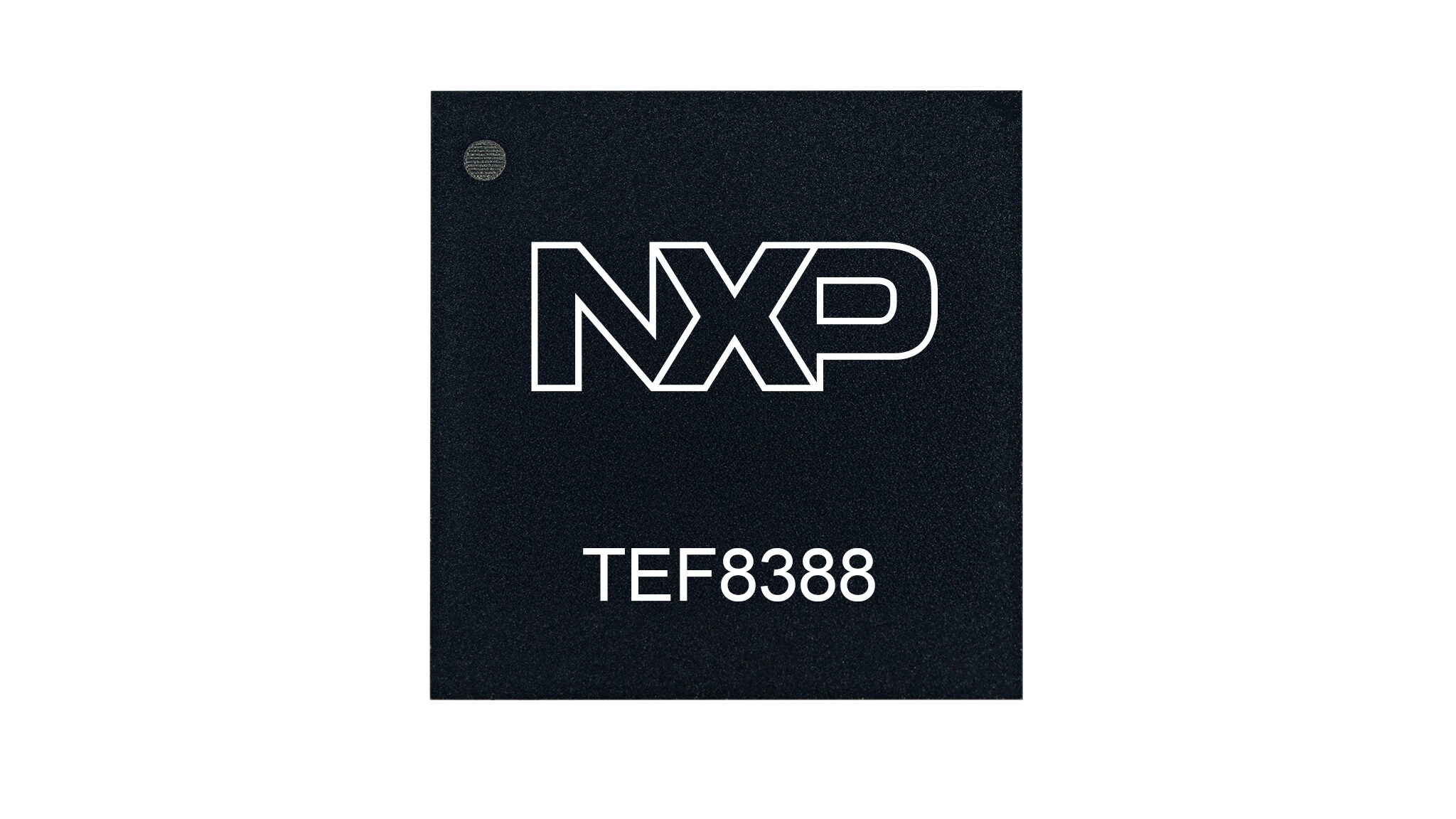

TEF8388 High‑Performance Automotive Radar Transceiver for Imaging Radar
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.
TEF8388 is a highly integrated 76-81 GHz automotive FMCW radar transceiver for scalable imaging radar systems supporting autonomous driving Levels 2+, L3 and beyond. With eight transmitters and eight receivers, and advanced on-chip calibration and safety, it enables high-resolution sensing, a reduced system bill of material (BOM), and excellent RF performance in a compact Launcher-in-Package (LiP) package.
Combined with the S32R41, S32R45 or S3247 processors, it forms a scalable imaging radar solution.
製品詳細
Features
- 76-81 GHz FMCW radar band
- 8 transmitters / 8 receivers
- 7-bit high-accuracy phase rotator
- 14 dBm output power
- 12 dB noise figure
- Supports cascading of up to 4 devices
- Launcher-in-Package (LiP) 16 x 16 mm
- Integrated Arm® Cortex®-M7 core for chirp control & calibration
- ISO 26262 SEooC ASIL-B
- AEC-Q100 qualified
- -40°C to 150°C junction temperature
ドキュメント
クイック・リファレンス ドキュメンテーションの種類
2 ドキュメント
ファクト・シート (1)
-
TEF8388 RFCMOS Automotive Radar Tranceiver[TEF8388-FS]
ホワイト・ペーパ (1)
-
4D イメージング・レーダー：安定した自動運転レベルL2+を実現する 高度なセンサ技術[IMAGINGRADARWP]
