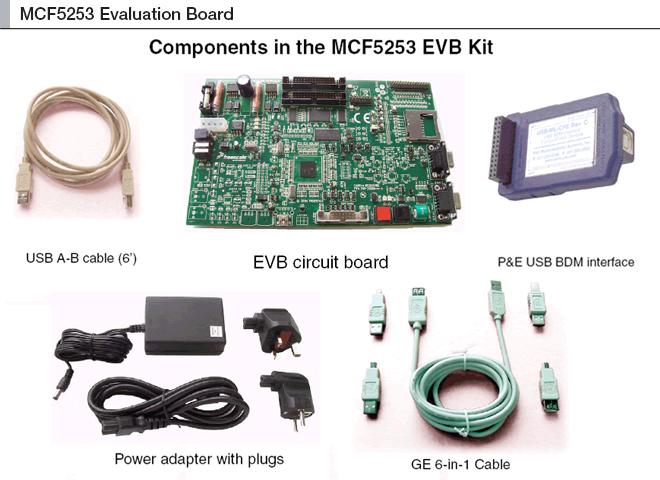

MCF5253 Evaluation Board
M5253EVB アラートの受信
M5253EVB is a versatile single-board computer based on the MCF5253 ColdFire®® processor. It may be used as a powerful microprocessor-based controller in a variety of applications. It serves as a complete microcomputer system for reference design, development/evaluation, training, and educational use. The user need only connect an RS-232 compatible terminal (or a personal computer with terminal emulation software) and a power supply to have a fully functional system.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
ColdFire® V2 Processors
- MCF525X: Integrated ColdFire® V2 Microprocessor
Features
Microcontroller
- MCF5253 32-Bit ColdFire®© Controller
Additional Memory
- SDRAM
- Flash ROM
Serial Interfaces
- USB 2.0 High-Speed OTG Connector
- IDE/ATA interface
- CAN Transceiver to DB-9 Connector
- RS-232 transceiver to DB-9 Connector
- SD Card Interface
- TFT Display Interface
- KeyPad (ATD)
Digital and Analog Audio I/O connections
- DAC to Headphone Socket
- RCA Phono plugs to ADC
- Audio Out to Optical EBU Transmitter
- Optical EBU receiver to Audio In
ドキュメンテーション
クイック・リファレンス ドキュメンテーションの種類.
3 ドキュメント
-
ユーザ・ガイド
M5253EVB Quick Start Guideはじめに
-
リファレンス・マニュアル
M5253C3 Evaluation Board Users Guide
-
ファクト・シート
M5253EVB Poster
