Tower Board - SB0800, Octal Valve/Pump Controller SoC

TWR-SB0800-36EVB

製造中止

このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

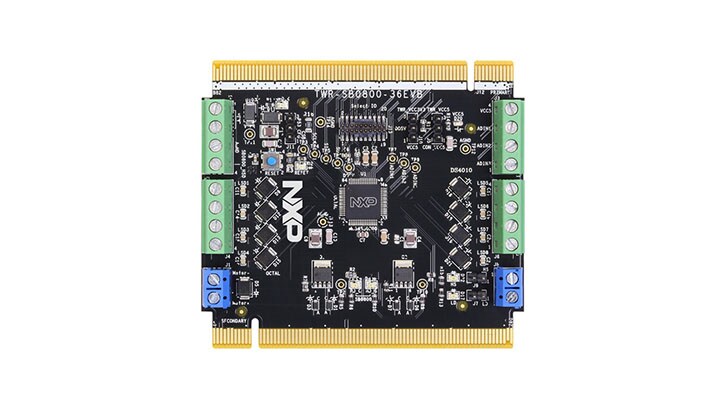

The TWR-SB0800-36EVB module is a development board illustrating the MC34SB0800 Octal Valve and Pump Controller System on Chip which consists of four low-side drivers regulated/PWM, a high side pre-driver safe switch to protect the valves against short circuit and a high side pre-driver to control a DC motor.

The tower module provides rapid prototyping for industrial applications requiring high feature integration and safety features with the embedded supervision
Can operate with any MCU tower board available on MCU and Processors modules offering an easy plug and play system
Processor Expert^® component Valve Driver and Embedded Software Valve Driver enables rapid embedded application development.

製品詳細

ブロック図

Tower Board - SB0800

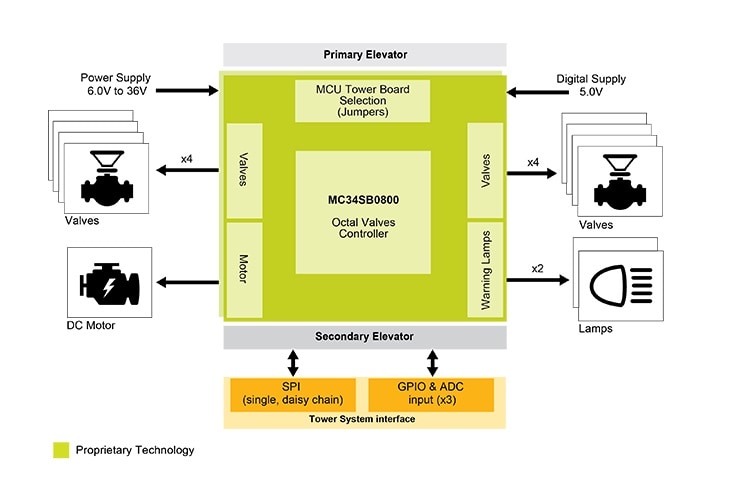

TWR-SB0800-36EVB Evaluation Board Block Diagram

図を取得する PDF

Features

General Specifications

Small power Package LQFP64 pins
x4 Low side drivers current regulated or PWM (5 A)
x4 PWM Low side drivers (5 A)
x1 High side pre-driver Safe Switch
x1 High side pre-driver for DC Motor (500 Hz)
x3 ADC input (10 Bits)
x1 Low side drivers (general purpose)
x1 High side drivers (general purpose)
SPI communication (10 MHz)
Watchdog

購入オプション

クリックして展開

TWR-SB0800-36EVB
製造中止

Evaluation board - SB0800, Solenoid/High Side predrivers, 8 CH / 2, 36 V, 2.25 A for LSD.
