PCA9532 Demonstration Board.
コンパクトリスト

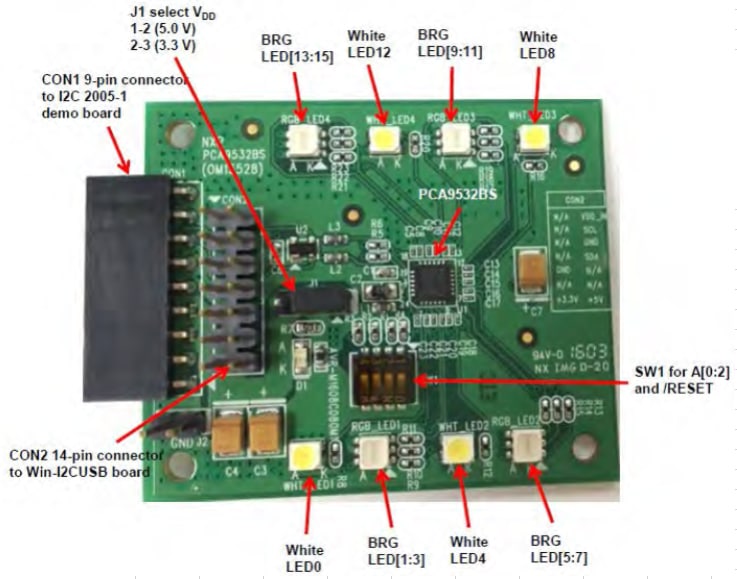

PCA9532 Demonstration Board
The PCA9532 evaluation board features LEDs for color mixing, blinking and dimming demonstrations. A graphical interface allows the user to easily explore the different functions of the driver. The board can be connected in series with other I²C demo-boards to create an evaluation system. The IC communicates to the host via the industry standard I²C-bus/SMBus port. The evaluation software runs under Microsoft® Windows™ PC platform.
製品詳細
対応製品
パワーマネージメント
LEDドライバ
- PCA9532: 16-Bit I²C-Bus LED Dimmer
Features
Key Features
- A complete evaluation platform for the PCA9532 16-channel Fm I²C-bus 25 mA voltage switch LED driver
- Convenient test points for easy scope measurements and signal access
Connectivity
- USB interface to the host PC
Power Management
- No external power supply required
User Components
- On-board RGB and White LEDs for visual experience
Tools and OS Support
- Easy to use GUI-based software demonstrates the capabilities of the PCA9532
