This development board is no longer manufactured. NXP will maintain support for this product but recommends the S32K3X4EVB-T172 Board for optimized performance and support.

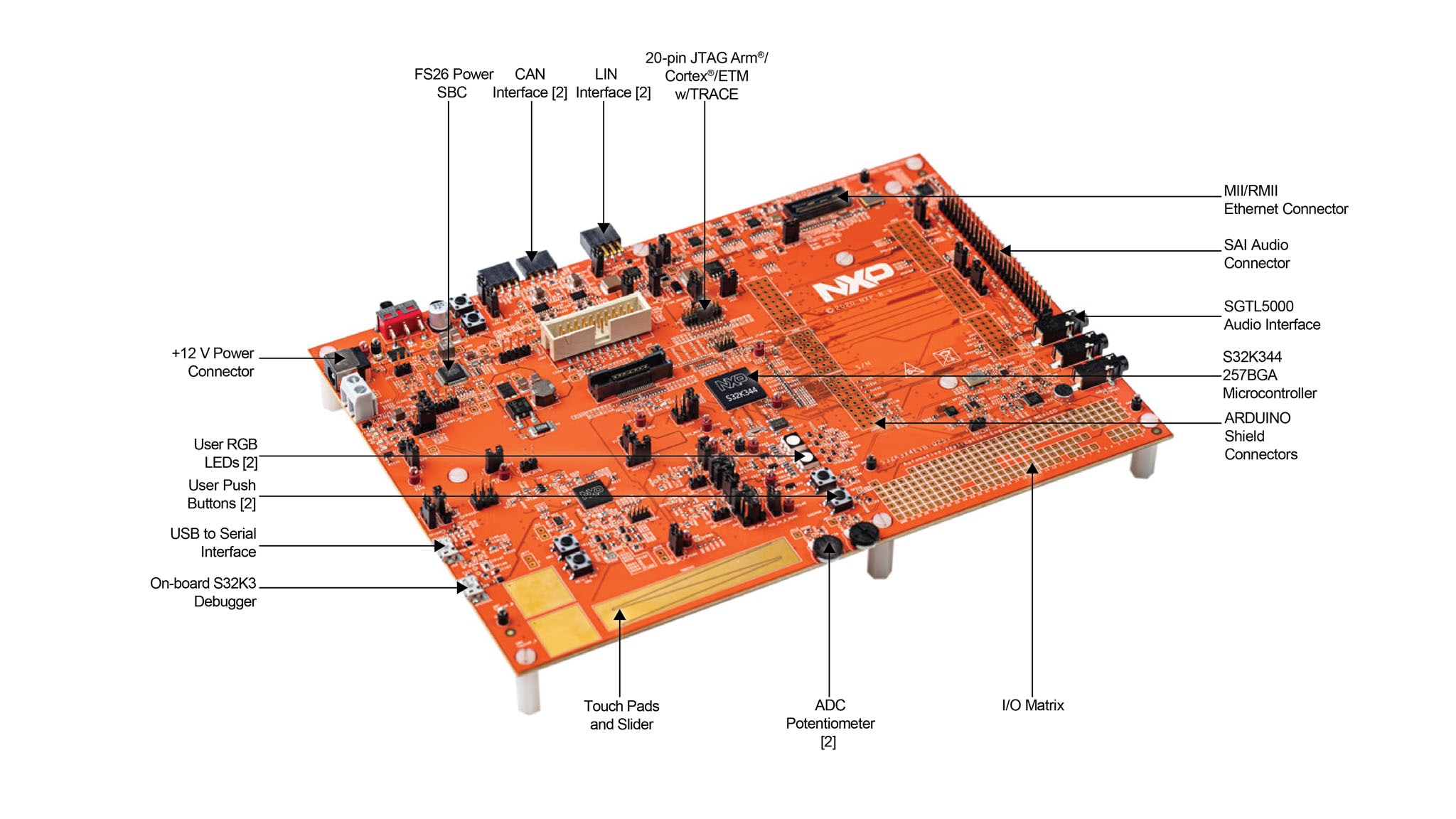

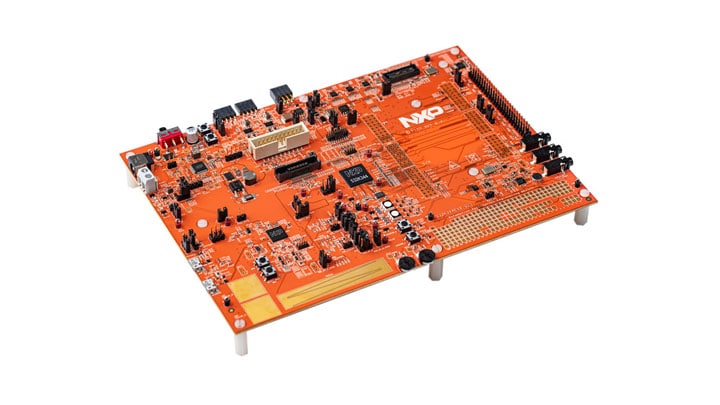

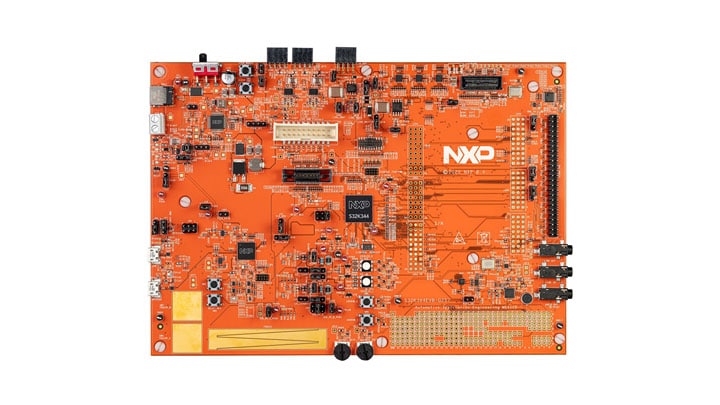

The S32K3X4EVB-Q257 is a full-featured evaluation and development board for general purpose industrial and automotive
applications.
Based on the 32-bit Arm® Cortex®-M7 S32K3 MCU in a 257 MPABGA package, the full-featured
S32K3X4EVB-Q257 offers dual cores configured in lockstep mode, ASIL
D safety hardware, HSE security engine, OTA support, advanced connectivity and low power.
The full-featured S32K3X4EVB-Q257 brings a standard-based form factor compatible with the Arduino® UNO pin
layout, providing a broad range of expansion board options
for quick application prototyping and demonstration.
Offering the S32K3 EVB in two configurations:
- S32K3X4EVB-Q257: all components populated
-
S32K3X4EVBQ257ND: Kinetis K26 MCU not populated, require using an external debugger like IAR's I-jet, PEmicro's
Multilink and CYCLONE FX or CYCLONE LC, Lauterbach's
PowerDebug USB 3 and PowerDebug PRO, SEGGER J-Link, iSYSTEM's BlueBoxes iC5000/iC5700, Keil's ULINK, or Green
Hills Probe.
