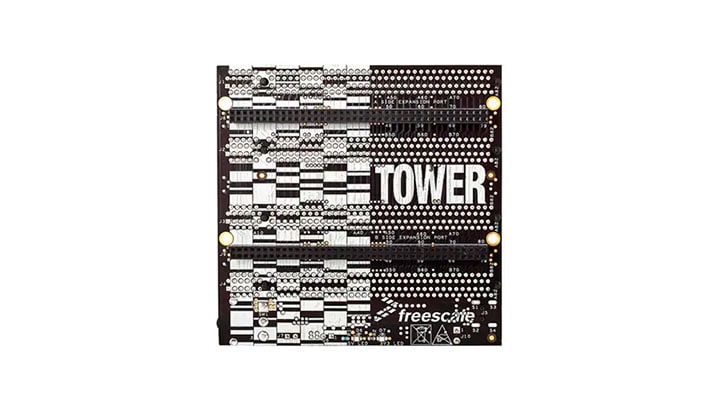

TWR-ELEV
アクティブ -
Tower System, Peripheral Module, Elevator Risers.
コンパクトリスト
Point of Sale Solution
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

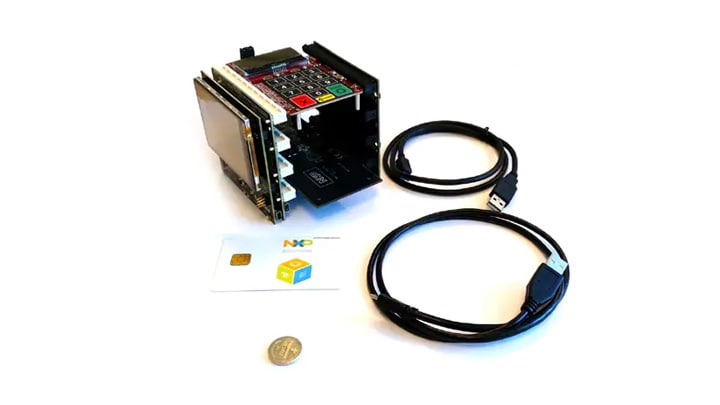

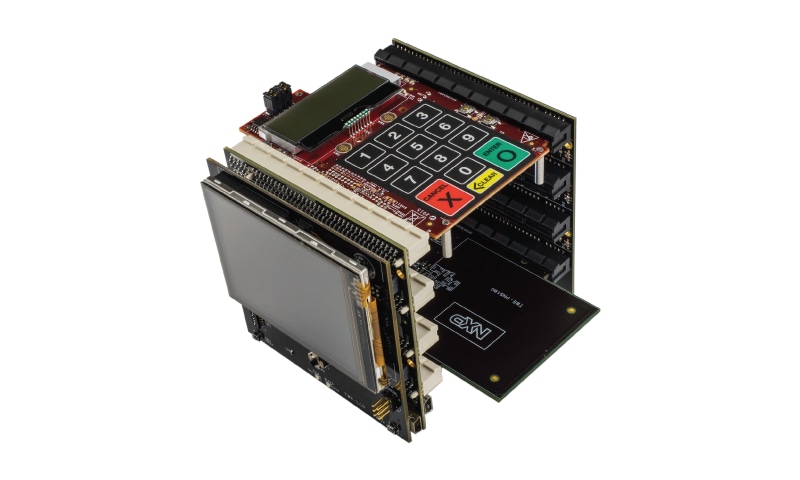

Many companies are creating products today that they want to add payment capabilities to. However, getting the necessary PCI and EMVCo certifications are a significant engineering and development barrier. The SLN-POS-RDR Point of Sale (POS) Reader Solution enables you to quickly add a PCI®- and EMVCo®-compliant PIN entry device (PED), NFC reader, chip card reader and magnetic stripe reader (MSR) to any design to enable credit card payment.
製品詳細

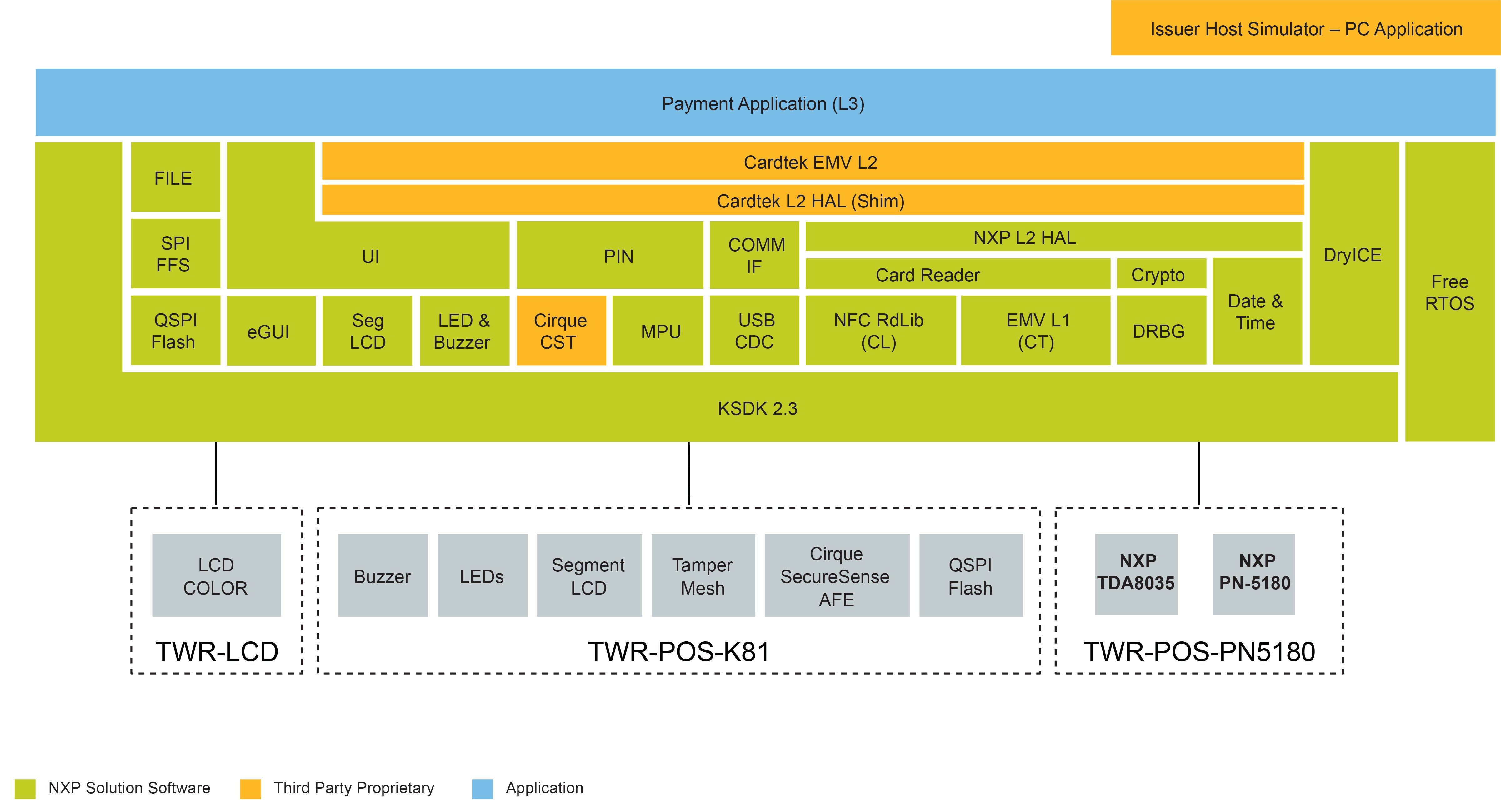

ブロック図
図を選択する。:
Features
Kinetis K81
- Advanced physical tamper security
- Advanced public-key hardware w/ support for RSA and ECC
- XIP from external Q-SPI flashes with decryption on the fly
Contactless Reader
- PN5180 contactless 13.56 MHz NFC front-end IC
Contact Reader
- TDA8035 contact front-end IC
Display Options
- Two-line character segment
- 3.2” QVGA TFT
EMVCo
- EMVCo Level 1 CT/CL stacks by NXP
- EMVCo Level 2 CT/CL stacks by Cardtek
- EMVCo and PCI PTS V4.1 certification
Other
- Chip-and-PIN keypad based on Cirque® SecureSense™ technology
購入オプション
-
TWR-POS-K81
アクティブ -
Point-Of-Sales (POS) Tower System Development Board based on Kinetis K81 MCUs.
-
TWR-LCD
アクティブ -
Tower System, Peripheral Module, Graphical LCD.
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
4 ドキュメント
ホワイト・ペーパ (2)
-
Speed Design and Certification of EMV Payment Acceptance[SECURECARTRANFS]
ユーザ・ガイド (2)
-
Getting Started with Point of Sale Solution[GS-POINT-OF-SALE-RDR]はじめに
