MC1323x Development Kits

1323x_Dev_Kits アーカイブス
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

NXP® offers a full set of hardware platforms for evaluation of the cost effective MC13234 and MC13237 (collectively MC1323x) system-on-chip (SoC) solutions.

  • Choose the hardware and software platform that achieves your design goals
  • The newest SoC product family integrates the 2.4 GHz transceiver, HCS08 QE-series MCU, memory, I/O and RF matching components in a single IC
  • The MC1323x kits are ideal for wireless applications in the consumer, health care and industrial markets

製品詳細

Features

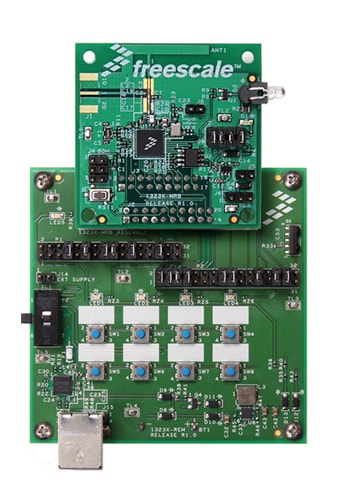

1323X-MRB (Modular Reference Board)

  • MC13234CHT 2.4 GHz SoC
  • Printed F antenna
  • Programmable 128 kB Flash with 8 kB of RAM
  • On board BDM port for MCU Flash reprogramming and in-circuit hardware debugging
  • Header for connection to RCM and REM
  • IR Transmitter
  • Connections for battery or external power supply

1323x-REM (Remote Extender Board)

  • Connects to the 1323X-MRB or 1323X-MRB-ADC
  • Onboard expansion capabilities for external application-specific development activities
  • USB connector
  • Four LEDs and eight switches for demonstration, monitoring, and control
  • Built-in battery connector for two AA batteries

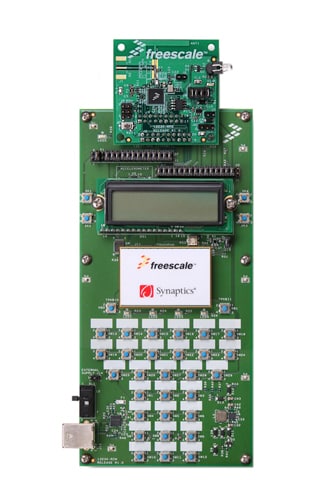

1323x-RCM (Remote Control Motherboard)

  • Connects to the 1323X-MRB or 1323X-MRB-ADC
  • Programmable two-line LCD for displaying messages
  • Synaptics touch sensor
  • On board expansion capabilities for external application-specific development activities
  • USB connector
  • 4 LEDs and 36-button keypad for RF remote control demonstration
  • Built-in battery connector for two AA batteries

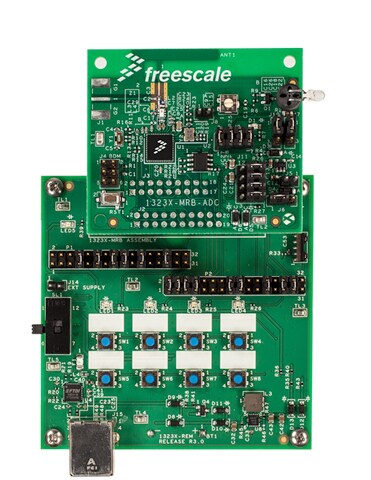

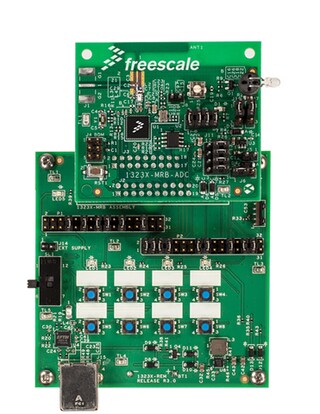

1323X-MRB-ADC (Modular Reference Board)

  • MC13237CHT 2.4 GHz SoC, 12-bit ADC
  • Printed F antenna
  • Programmable 128 kB Flash with 8 kB of RAM
  • On board BDM port for MCU Flash reprogramming and in-circuit hardware debugging
  • Header for connection to RCM and REM
  • IRTransmitter
  • Connections for battery or external power supply

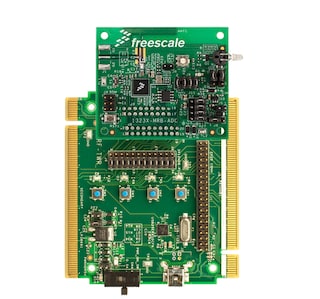

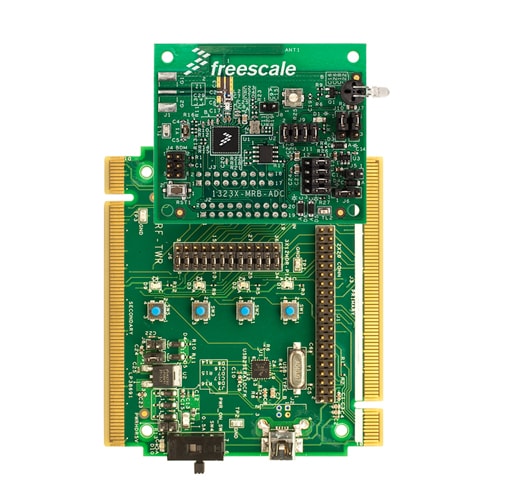

TWR-RF-MRB (Tower® Motherboard)

  • Header connection for MRB
  • Allows integration into NXP® Tower Development System
  • On-board regulator to provide external supply
  • Four user-controllable LEDs
  • Four user pushbutton switches
  • USB Mini-B connector

購入オプション

13234DSK-BDM-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
13234NSK-BDM-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
13234NSK-SFTW-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
13237ADC-BDM-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
13237ADC-SFTW-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
1323XDSK-Image

クリックして展開

  • $228.85 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
1323XDSK-BDM-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
1323XNSK-Image

クリックして展開

  • $516.35 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
1323XNSK-BDM-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
1323XNSK-SFTW-Image

クリックして展開

  • $1148.85 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
TWR-13237-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
TWR-13237-KIT-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
TWR-RF-MRB-Image

クリックして展開

  • TWR-RF-MRB
    アクティブ

  • Tower RF Module for MRB.

  • の数量に対して 1
代理店からの注文
