Differential and Gauge, Integrated Pressure Sensor (0 to 10 kPa)
As of February 2, 2026, NXP MEMS sensor products have been transitioned to STMicroelectronics. For more information, contact STMicroelectronics.

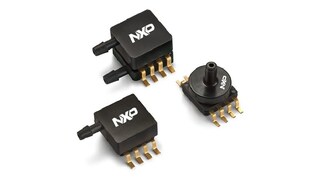

The NXP MPX5010/MPXV5010G/MP3V5010 series of piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, particularly those employing a MCU or MPU with A/D inputs. This transducer combines advanced micromachining techniques, thin-film metallization and bipolar processing to provide an accurate high-level analog output signal that is proportional to applied pressure.
製品詳細
Features
Key Features
- 5.0 percent maximum error over 0 °C to 85 °C
- Ideally suited for microprocessor or microcontroller-based systems
- Durable epoxy unibody and thermoplastic (PPS) surface mount package
- Temperature compensated over -40 °C to +125 °C
- Silicon shear stress strain gauge
- Available in differential and gauge configurations
- Available in surface mount (SMT) or through-hole (DIP) configurations
