Absolute, Integrated Pressure Sensor (20 to 105 kPa)
- このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

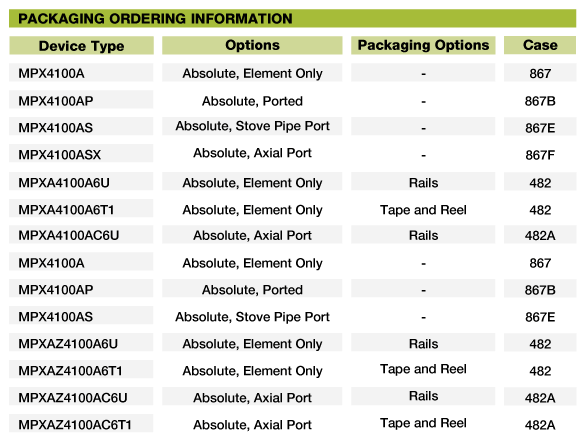

The MPxx4100 family (MPX4100, MPX4100A/MPXA4100A and MPXAZ4100A series) manifold absolute pressure (MAP) sensor for engine control is designed to sense absolute air pressure within the intake manifold. This measurement can be used to compute the amount of fuel required for each cylinder. The small form factor and high reliability of on-chip integration makes NXP®.s MAP sensor a logical and economical choice for automotive system designers.
The MPxx4100 family series piezoresistive transducer is a state-of-the-art, monolithic, signal-conditioned silicon pressure sensor. This sensor combines advanced micromachining techniques, thin-film metallization and bipolar semiconductor processing to provide an accurate high-level analog output signal that is proportional to applied pressure.
製品詳細
Features
- 1.8 percent maximum error over 0° to 85°C
- Specifically designed for intake manifold absolute pressure sensing in engine control systems
- Ideally suited for microprocessor or microcontroller-based systems
- Temperature compensated over -40°C to +125°C
- Resistant to high humidity and common automotive media
- Durable epoxy unibody element or thermoplastic (PPS) surface mount package
