Assembler Development Suite for the 8-Bit MICRO RISC KERNEL (MRKII)

OM6710 製造中止

画像にカーソルを合わせると拡大表示されます。

The OM6710 (Ride7) is the Raisonance brand integrated development environment (IDE), designed for the development of MRK II projects from beginning to end. The RKit-MRK plug-in for Ride7 provides the tools necessary to build MRK II-based projects:

  • Toolchain (Assembler and linker) for building applications.
  • OM6713/USB Hardware debugger for debugging with U-DDB board.

製品詳細

ブロック図

Ride 7 GUI Diagram

Ride7 GUI Diagram
図を取得する PDF

Features

OM6710

  • (Ride7) integrated development environment
    • Software Development Environment
    • Includes Code Editor, Assembler, and Linker
    • Full-featured Simulator for MRKII Core
    • Uses hardware debugging with OM6713/USB
    • operate on Windows 8 (32 and 64 bit), Windows 7 (32 and 64-bit), Windows Vista (32 and 64-bit), and Windows XP SP3 (32-bit only)

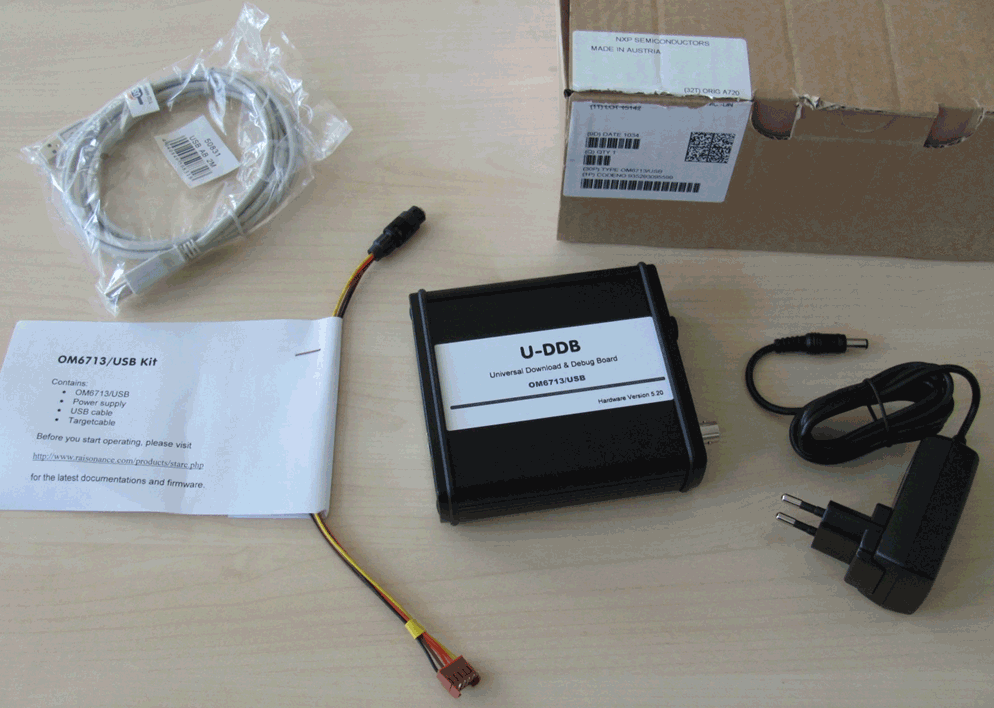

OM6713/USB

  • (U-DDB, Universal Download and Debug Board) Hardware Debugger
    • Cost-effective interface device
    • Full-featured In-System Debugging
    • In-System Programming / Downloading
    • Communicates with Host PC running application software (OM6710 [Ride7], EDDC)
    • Communicates with MRKII derivate via on-chip Monitor and Download Interface (MDI)

EDDC

  • (Easy Device Download and Configuration) Command-Line Tool
    • Download function for Erase / Program E_ROM and EEPROM
    • LOck / Protect devise

購入オプション

OM6710-Image

クリックして展開

  • OM6710
    製造中止

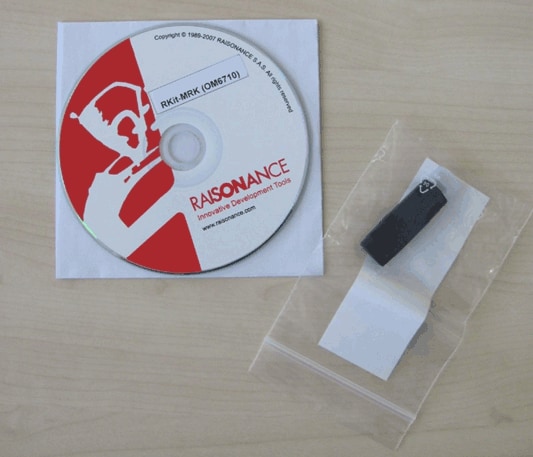

  • Integrated Development Enviroment (Ride7), Full Feature Simulator for MRKII Core.

    • OM6710 (Ride7)
    • USB key License dongle
    • Software CD
    • RKit-MRK license delivery information
    • Target Interface Cable (connection cable from U-DDB to Target Board)
    • Power Supply (9VDC/300 mA)
    • USB Cable
    OM67100-Image

    クリックして展開

    • OM67100

    • The Moulded Coil is part of the resonance antenna circuit of vehicle Immobilization applications (e.g. PCF7936AA).

    • の数量に対して 1K
    OM67101-Image

    クリックして展開

    • OM67101
      製造中止

    • Assembler Development Suite for the 8-Bit MICRO RISC KERNEL (MRKII).

      OM67102-Image

      クリックして展開

      • OM67102
        製造中止

      • Assembler Development Suite for the 8-Bit MICRO RISC KERNEL (MRKII).

        OM67103-Image

        クリックして展開

        • OM67103
          製造中止

        • Assembler Development Suite for the 8-Bit MICRO RISC KERNEL (MRKII).

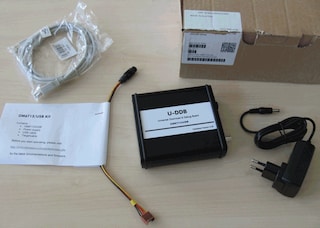

          OM6713-Image

          クリックして展開

          • OM6713
            生産終了 (EOL)

          • U-DDB, Universal Download & Debug Board Hardware Debugger.

          • の数量に対して 1
