S-Parameters and noise for BGU6005N2
Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass
BGU6005 アラートの受信
The BGU6005/N2, also known as the GPS1001M, is a Low Noise Amplifier (LNA) for GNSS receiver applications in a plastic leadless 6-pin, extremely small SOT886 package. The BGU6005/N2 requires only one external matching inductor and one external decoupling capacitor.
Outline 3d SOT886
製品詳細
Features
- Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
- Noise figure (NF) = 0.85 dB
- Gain 17.5 dB
- High input 1 dB compression point Pi(1dB) of -6 dBm
- High out of band IP3i of 6 dBm
- Supply voltage 1.5 V to 3.1 V
- Power-down mode current consumption < 2 μA
- Optimized performance at low supply current of 5.2 mA
- Integrated matching for the output
- Requires only one input matching inductor and one supply decoupling capacitor
- Input and output DC decoupled
- ESD protection on all pins (HBM > 2 kV)
- Integrated temperature stabilized bias for easy design
- Small 6-pin leadless package 1 mm x 1.45 mm x 0.5 mm
Target Applications
- LNA for GPS, GLONASS, Galileo and Compass (BeiDou) in smart phones, feature phones, tablet PCs, personal navigation devices, digital still cameras, digital video cameras, RF front end modules, complete GPS chipset modules and theft protection (laptop, ATM).
ドキュメンテーション
クイック・リファレンス ドキュメンテーションの種類.
1-5 の 6 ドキュメント
-
アプリケーション・ノート

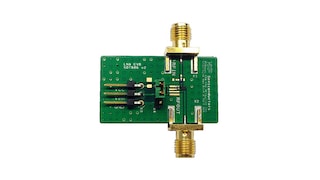

BGU6005/N2 GNSS LNA evaluation board
-
