S-parameters and Noise parameters BGU7003W
Wideband Silicon Germanium Low-Noise Amplifier MMIC
BGU7003W アラートの受信
The BGU7003W MMIC is a wideband amplifier in SiGe:C technology for high speed, low-noise applications in a plastic, leadless 6 pin, extremely thin small outline SOT886 package.
Outline 3d SOT886
製品詳細
Features
- Low noise high gain microwave MMIC
- Applicable between 40 MHz and 6 GHz
- Integrated temperature stabilized bias for easy design
- Bias current configurable with external resistor
- 110 GHz transit frequency - SiGe:C technology
- Power-down mode current consumption < 1 μA
- ESD protection > 1 kV Human Body Model (HBM) on all pins
Target Applications
- GPS

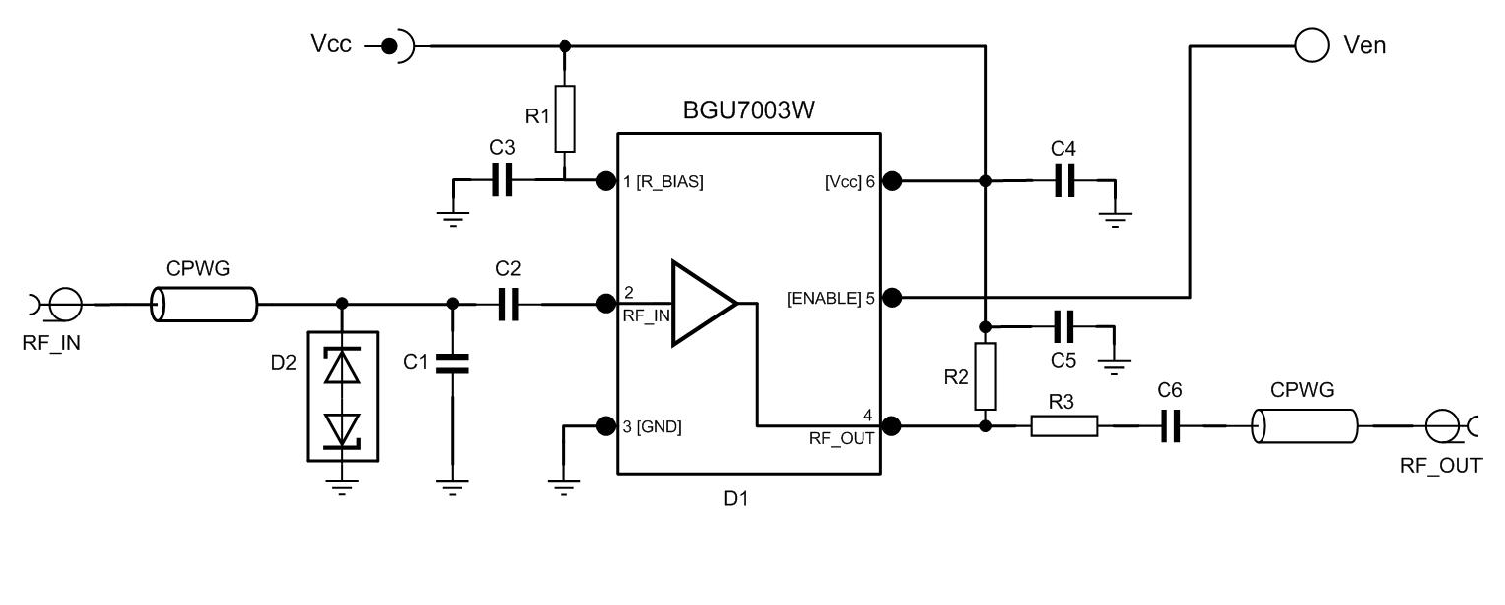

- FM LNA
- Low-noise amplifiers for microwave communications systems
- WLAN and CDMA applications
- Analog / digital cordless applications
