32-Bit Devices for Advanced Connected Radio, Entry-Level Infotainment and Digital Instrument Cluster Applications

動画の上をクリックすると再生されます。

製品詳細

セクションを選択:

ブロック図

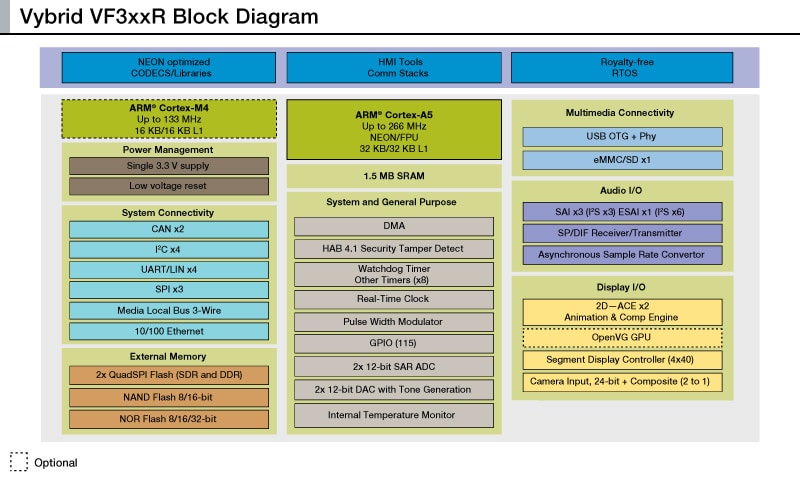

VFxxx R Series VF3xxR Block Diagram

VFxxx R Series VF3xxR Block Diagram

Features

Hardware Features

  • Cortex-A5 up to 266 MHz
  • Cortex-M4 up to 133 MHz
  • 1.5 MB on-chip SRAM
  • Dual display support up to WQVGA with 2D animation and composition engine and OpenVG® GPU
  • Video ADC for direct connection to analog cameras
  • This product is included in NXP® product longevity program, with assured supply for a minimum of 15 years after launch

Production Grade Software Features

  • Complete MQX BSP
  • Complete multimedia framework: player, media browser, cover flow, metadata and album art support
  • CE connectivity for devices such as iPhone®, smartphones, USB/SD memory cards
  • Comprehensive list of audio CODECs
  • Commercial licensing terms with standard warranty and indemnification
  • Available support and maintenance program

Industry-Leading Partners

  • Altia — Complete suite of HMI development tools
  • OpenSynergy — Bluetooth protocol stack
  • Cybercom blueGO — Bluetooth software framework
  • Alango — Voice Communication Package, AEC / NS

部品番号: SVF311R3K1CKU2, SVF312R3K1CKU2, SVF321R3K1CKU2, SVF322R3K1CKU2, SVF331R3K1CKU2, SVF332R3K1CKU2.
