MPC5567|32-bit MCU|Powertrain

Designed for engine management, the NXP^® MPC5567 embedded controller offers an ideal solution for any application that requires both high performance and FlexRay™ in a high-temperature automotive.

Targets mid-range engine management and industrial use cases that require complex, real-time control
Supports increased fuel efficiency and improved emissions
Offers system performance up to five times that of MPC500 predecessors
Facilitates reuse of legacy software architectures
Enables easy migration to next-generation 3 MB flash-embedded controllers
Pin-and code-compatible with other MPC5500 family MCUs

データシート

リファレンス・マニュアル

製品詳細

ブロック図

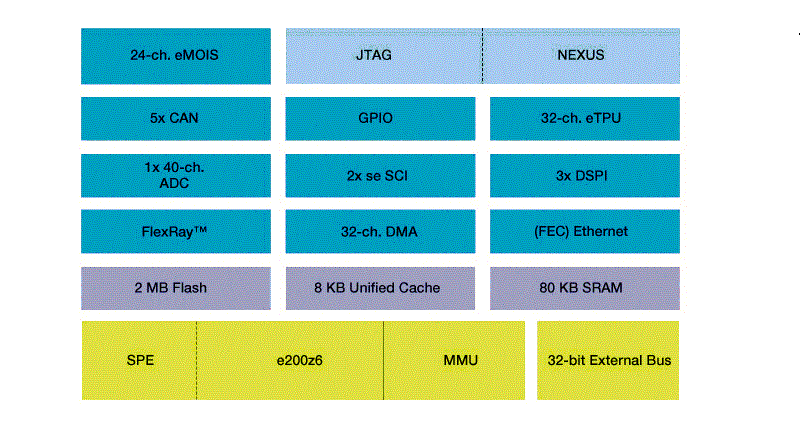

MPC5567 Microcontroller Block Diagram

図を取得する PDF

Features

Our e200z6 Core

High-performance 132 MHz 32-bit core built on Power Architecture technology with VLE
Memory management unit (MMU) with 32-entry fully associative translation lookaside buffer (TLB)
SPE (signal processing extension): DSP, SIMD and floating point capabilities

Memory

2 MB of embedded flash memory with error correction coding (ECC) and read while write capability (RWW)
64 KB on-chip static RAM with ECC
8 KB of cache (with line-locking) that can be configured as additional RAM

System

An enhanced time processor unit (eTPUs) with 32 I/O channels and 14.5K of designated SRAM
32-channel eDMA (enhanced direct memory access) controller
Interrupt controller (INTC) capable of handling 210 selectable-priority interrupt sources
Frequency modulated phase-locked loop (FMPLL) to assist in electromagnetic interference (EMI) management
MPC500 compatible external bus interface
Nexus IEEE^{^®}-ISTO 5001 class 3+ multicore debug capabilities > 5/3.3V IO, 5V ADC, 3.3V/1.8V bus, 1.5V core
416-pin PBGA and 324-pin PBGA package options
Temperature range: -40 to 125ºC

I/O

40 channel dual enhanced queued analog-to-digital converter (eQADC)—up to 12-bit resolution and up to 1.25 us conversions, six queues with triggering and DMA support
Three deserial serial peripheral interface (DSPI) modules—16 bits wide up to six chip selects each
Five controller area network (CAN) modules with 64 buffers each
Two enhanced serial communication interface (eSCI) modules
24-channel enhanced multiple I/O system (EMIOS) with unified channels
Dual-channel FlexRay interface
Fast Ethernet controller (FEC)

Development Tools

A comprehensive suite of hardware and software development tools is available to help simplify and speed system design
Development support is available from leading tools vendors providing compilers, debuggers and simulation development environments

Included in NXP ®.s product longevity program

Product longevity program with assured supply for a minimum of 15 years after launch
