USB-I²C-bus interface dongle with a GUI for the RTCs PCF85263 and PCF85363
OM13518 アラートの受信
- アーカイブス
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.

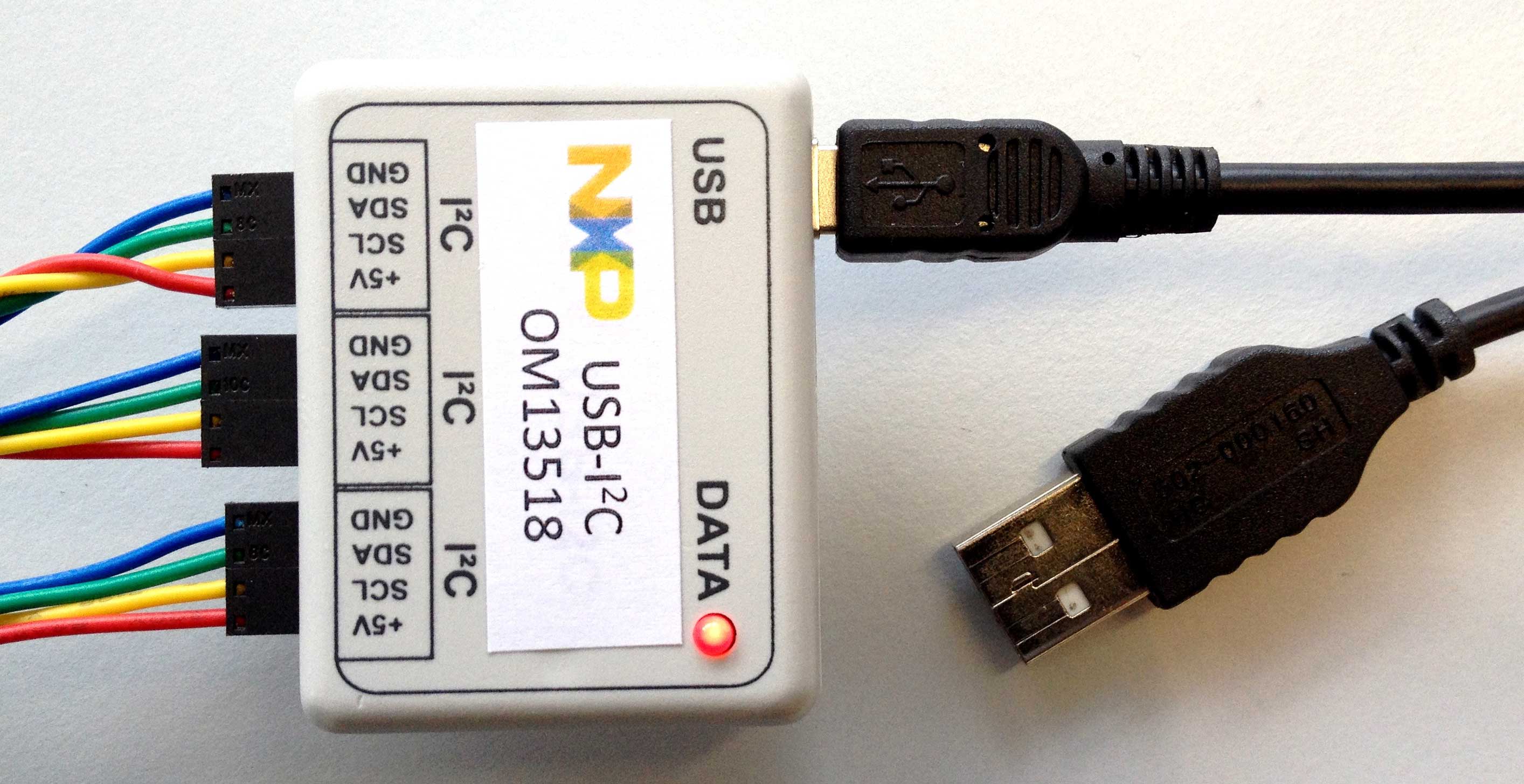

The OM13518 dongle is an easy to use interface handler between the USB of a PC and the I²C-bus. The OM13518 dongle is a ready to run module. It creates a virtual COM-port via a USB connection. It provides three I²C-bus connections with 5 V option to power the application (max 450 mA).
The software control via a Graphical User Interface (GUI) allows a fast start to communicate with different circuits.
製品詳細
Features
Connectivity
- Three I²C-bus ports are wired in parallel
- USB-2 is used for data and the 5 V power supply
Components
- Cables to connect up the I²C-bus are enclosed
