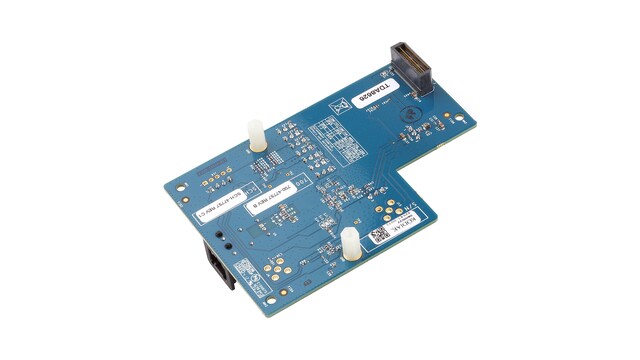

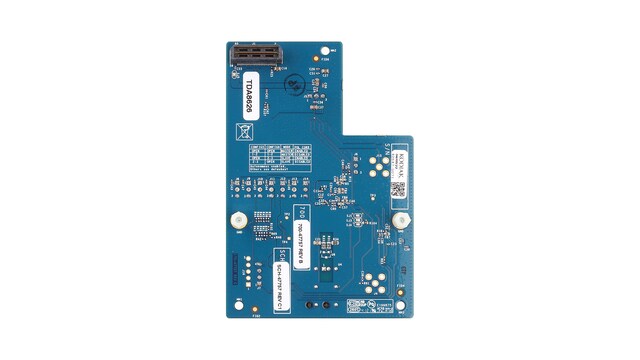

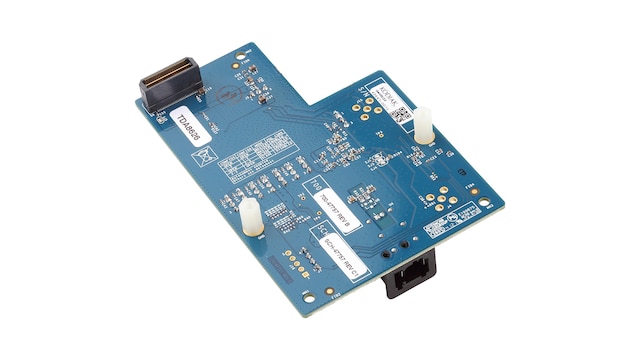

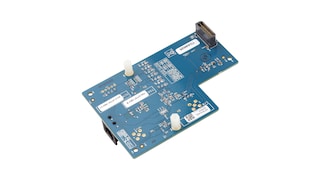

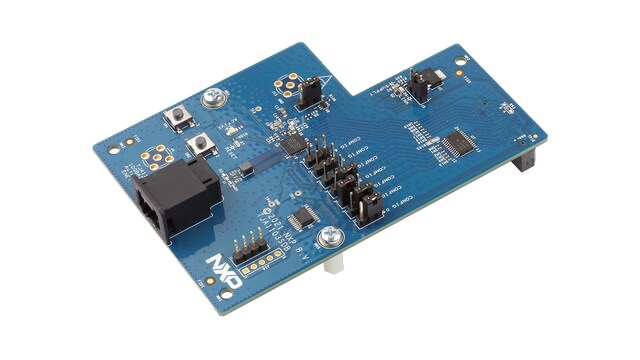

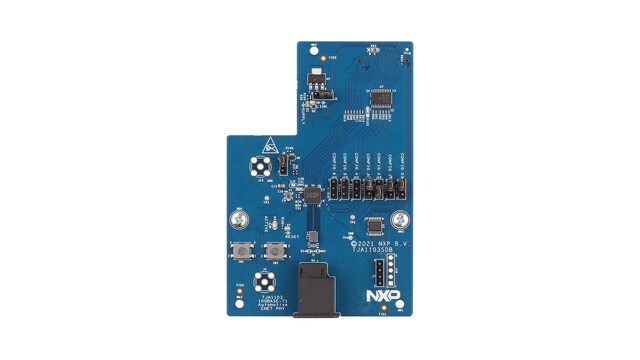

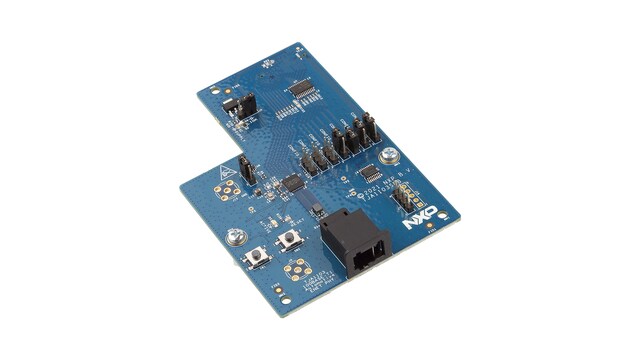

TJA1103 SABRE Development Board
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The TJA1103SDB SABRE development board is a purpose-built tool to evaluate the xMII data path in an application context together with a NXP processor and is specifically designed for software engineering tasks. To enable quick application prototyping, various NXP system development boards feature the common SABRE connector; for example, our latest S32K3 general-purpose MCU, S32G vehicle network processors and i.MX 8 processors.
製品詳細
Features
Connectivity
- 100BASE-T1 Automotive Ethernet
General Specifications
- Simple Automotive Ethernet system setup for prototype applications
- Quick functional evaluation of TJA1103
Microcontroller
-
SABRE Adapter for connection to S32K3, S32G and I.MX8+ boards
- 100BASE-T1 connectivity at ECU prototyping stage
- Simple chip configuration
- Chip status report via onboard LEDs
