TEA1936XDB1530
-
QC4.0/4.0+ 27W Mobile Charging.
デザイン・ファイル
1 設計・ファイル
-
プリント基板と回路図
TEA1936XDB1530-GRBR.zip
お客様の素早い設計とより早い製品化を実現する、技術情報と専門知識をご紹介します。

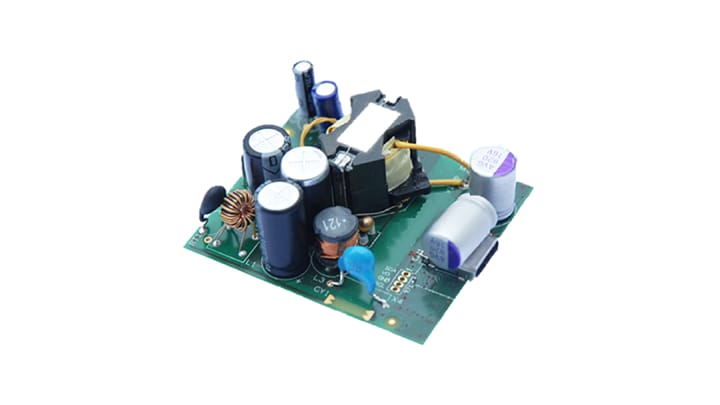

The QC4.0/4.0+ 27 W Mobile Charger enables the design of power supplies featuring extreme low standby power with the output voltage in full regulation, very high efficiency, and high reliability.
The NXP® chipset used is targeting mobile and notebook power supplies with power requirements up to 100 W. Supplies can be designed easily and with a minimum number of external components.
Symbol | Parameter | Value |
---|---|---|
Vi | input voltage | 90 to 264 V |
fi | input frequency | 47 to 64 Hz |
Vo | output voltages | QC4.0 : 3.3V... 11V / max. 3A or 27W
QC4.0+: QC4.0 or 5V/3A, 9V/3A and 12V/2.25A (QC2.0/QC3.0) |
Iout | maximum output current | 3 A (@ 5 V), 3 A (@ 9 V), 2.25 A (@ 12 V) |
Pout | output power [nominal] [peak] | 27.0 W
28.5 W |
n | efficiency [average] | > 90 % |
Pi(noload) | no-load input power | < 30 mW |
Tambient_adapt | ambient temperature adapter inside casing | -40 °C to 85 °C |
- | energy standard | ENERGY STAR v6.0,
CoC. tier 2 |
- | Electro Magnetic Interference (EMI) | CISPR22 compliant,
EN 55022 |
L x B x H | board dimensions | 48 mm x 41 mm x 21 mm |
TEA19361 | Primary Flyback Controller | |
TEA1993 | Synchronous Rectification Controller | |
TEA19051 | QC4.0/QC4.0+/PPS Controller |
