Technical Summary for PowerPC Nexus[USBMLPPCNEXUSSUM]
コンパクトリスト

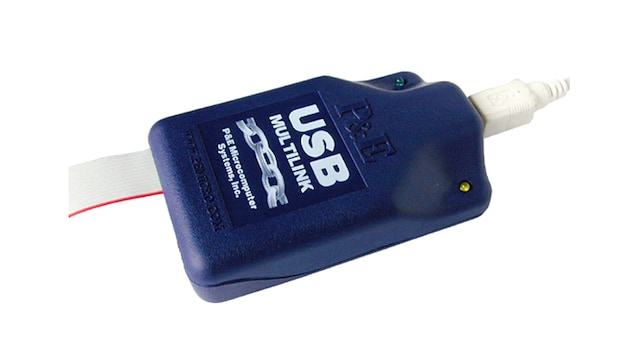

P&E USB Nexus Multilink Cable
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.
NOTE: The USBMLPPCNEXUS interface is being discontinued and replaced by the U-MULTILINK-FX interface. The U-MULTILINK-FX is compatible with the Codewarrior Software, which supported the USBMLCF-B hardware.
製品詳細
Features
Connectivity
- USB 2.0 interface from PC to Multilink allows for fast, hassle-free programming and debugging, with the ease and compatibility of the USB interface. USB cable is included.
- Draws power from USB interface-- no separate power supply required (draws less than 1mA from the target).
- Compatible with MPC55xx families of microcontrollers.
Power Management
- Target Voltage: 1.8 V - 5.0 V
Hardware Features
- Fast, hassle-free USB 2.0 communications interface
- Draws power directly from the USB port - no external power supply needed
- Multivoltage support for targets ranging from 1.8 to 5.5 Volts
- Compact size
Software Compatibility
- P&E Power Architecture BDM In-Circuit Debugger
- P&E Power Architecture BDM In-Circuit Programmer
- CodeWarrior®
- Third-party software
Support
- Works with P&E's PROG, ICD, CASM/WinIDE software - for a complete Power Architecture 55xx package, which includes the USB-ML-PPCNEXUS interface, PKGPPCNEXUS-USB is available.
