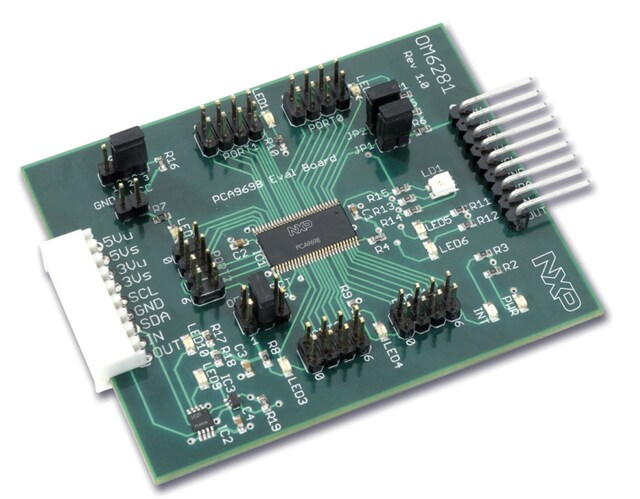

PCA9698 demonstration board OM6281
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.
The PCA9698 evaluation features headers to access all GPIO bits and LEDs for GPIO (output) demonstration. In addition, a PCA9530 LED dimmer/blinker is on-board to demonstrate the capability of generating a complex dimming/blinking pattern simultaneously on 40 LEDs. The board can be connected is series with other I2C-bus demo-boards to create an evaluation system.
The IC communicates to the host via the industry standard I2C-bus/SMBus port. The evaluation software runs under MS Windows PC platform.
製品詳細
Features
Connectivity
- USB interface to the host PC
User components
- On-board LEDs for visual experience
Support
- Easy to use GUI-based software demonstrates the capabilities of the PCA9698
- No external power supply required
- A complete evaluation platform for the PCA9698 40-bit GPIO
- Convenient test points for easy scope measurements and GPIO access
