OM13503
生産終了 (EOL) -
PCA8539 demoboard.

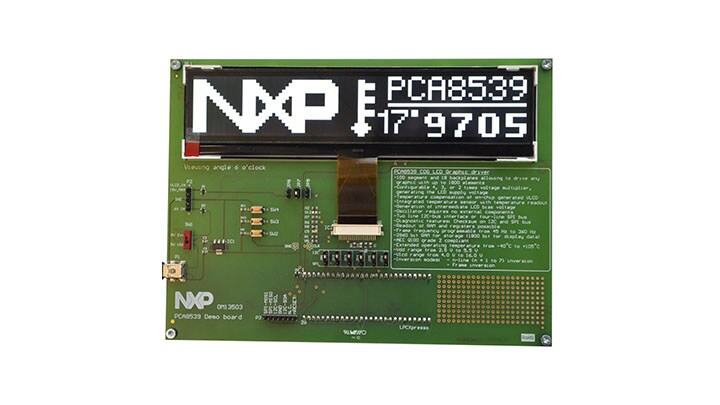

PCA8539 Demo Board
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The OM13503 is an LCD demo board which can be used to demonstrate and evaluate the PCA8539 dot-matrix driver. This is a Chip-On-Glass LCD driver which can drive a dot matrix up to 100 × 18 dots with a display size of up to 7".
The board is controlled by an LPCXpresso microcontroller board, which contains the LPC1115, a Cortex M0 controller. A free IDE can be downloaded in order to modify the software. Supply of the board can be done via an AC adapter or USB connector.
The 12NC of the OM13503 board is 9353 031 21598.
製品詳細
Features
Microcontroller
- Plugged in OM13035 LPCXpresso board with LPC1115 microcontroller
Power Management
- Power supply can be done either via USB or an external power supply. This can also be used for an external VLCD
Display
- Demonstrates PCA8539 LCD driver
- Features a vertical alignment (VA) COG display module with integrated backlight
User Components
- 3 push buttons
- User modifiable firmware, In-System / In-Application Programming (ISP / IAP) via USB
