NFC-Bluetooth® Low Energy smart lock kit
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.

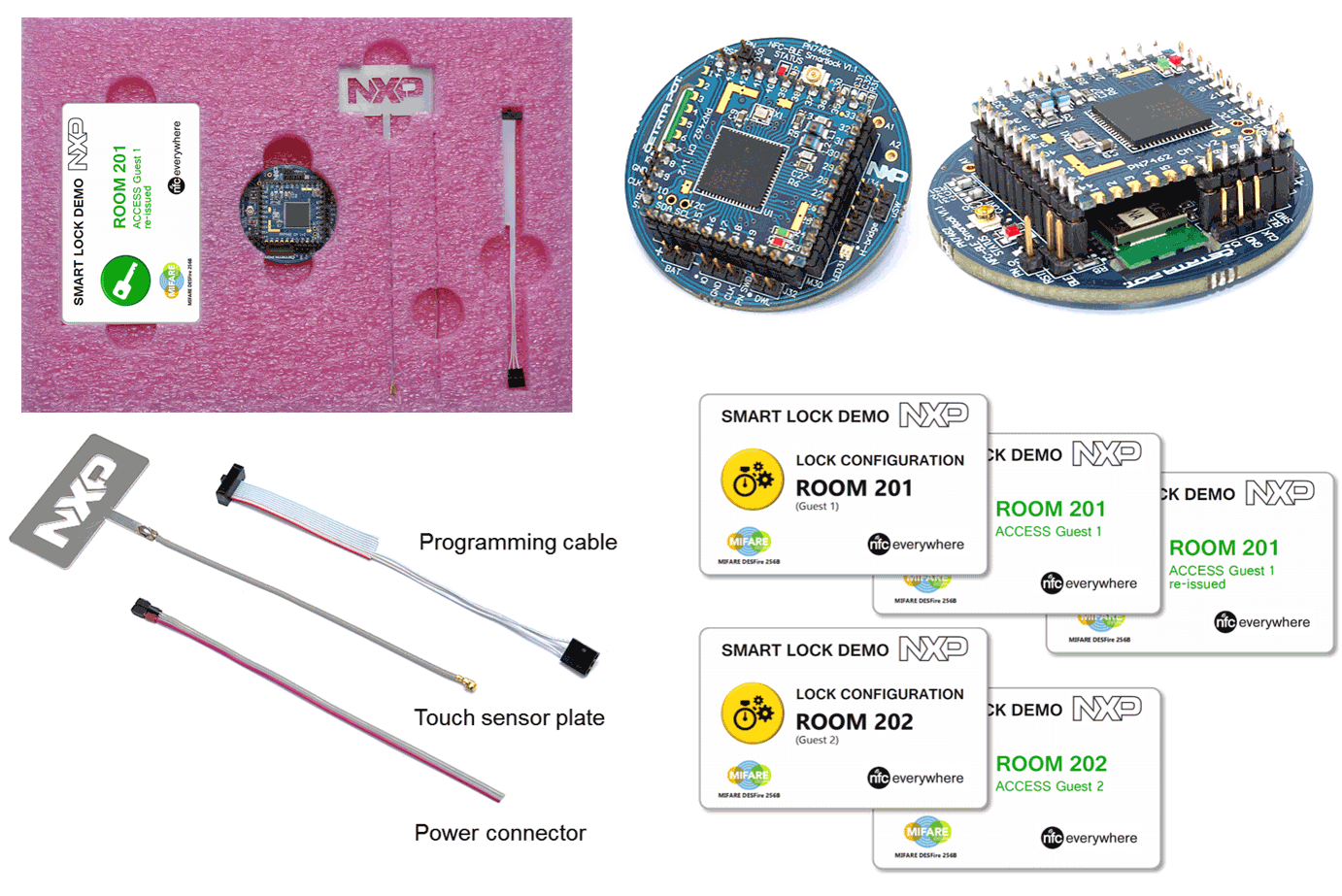

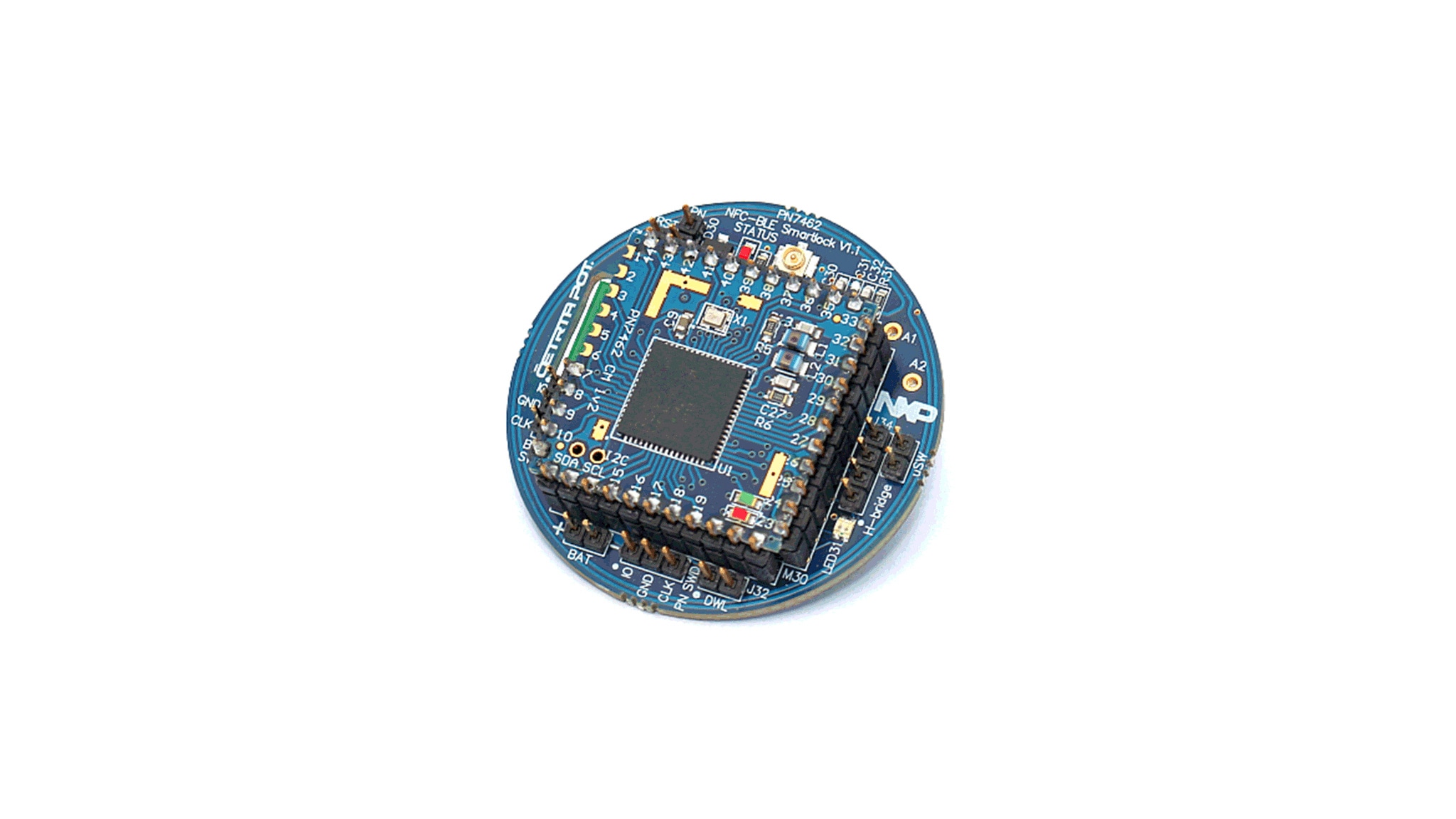

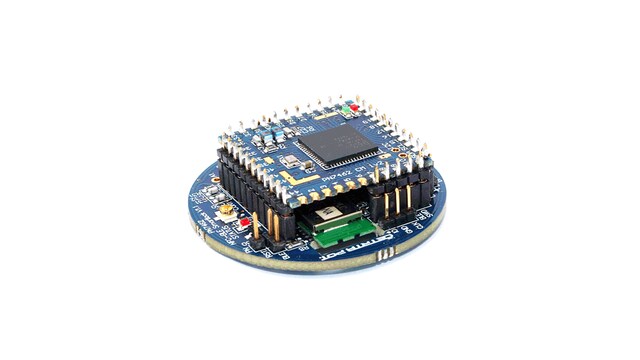

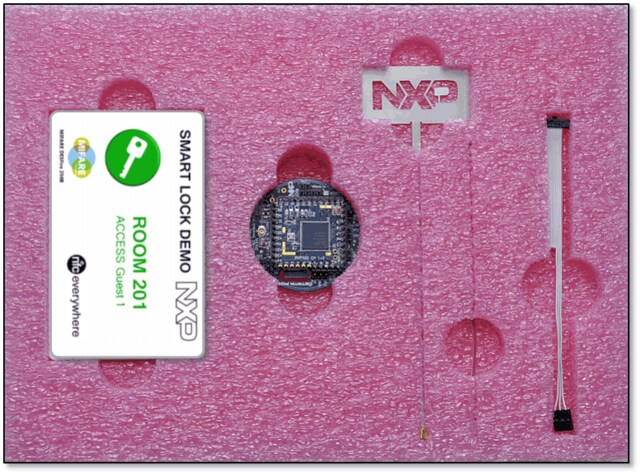

OM27462NBR is a battery operated easy-to-use smart lock demonstrator kit for hospitality door access applications. The door operates by exchanging and verifying door access tokens via NFC and Bluetooth Low Energy. The design incorporates NXP® PN7462 first all-in-one full NFC Controller and the ultra-low-power Bluetooth Low Energy system-on-chip QN9021. The hardware is designed for low-power operation using a CR2 battery and features intelligent sleep and wake-up logic via Bluetooth Low Energy and a touch sensor using NXP capacitive touch sensor IC PCF8883.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by NXP® Semiconductors is under license.
製品詳細
Features
Power Management
- Battery operated
Wireless
- NFC and Bluetooth Low Energy design and operation
- Token concept
- Access token exchange and validation
- ECDSA token signature verification
- Smart card, Bluetooth Low Energy, and NFC via HCE token exchange
Support
- MIFARE® DESFire® support
- Android™ app available in Google Play™ Store
- Ready to use
