MRF101AN RF Essentials Kit
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Jump start your RF amplifier design with NXP's MRF101AN RF Essentials Kit.
Using MRF101AN, a 100 W RF power LDMOS transistor designed in an easy-to-use TO-220 package, the RF Essentials Kit helps accelerate PA design. Reference circuit examples are available for various applications with frequencies ranging from 1.8 to 250 MHz.
Typical Applications
- Amateur radio
- Broadcast
- Industrial, scientific, medical (ISM)
- RF energy
- Switch mode power supplies
製品詳細
Features
MRF101AN RF Power LDMOS Transistor
- 50 V
- 100 W CW
- 1.8 to 250 MHz
- TO-220 over-molded plastic package
Design Resources
- BOM for compact reference designs
- Tuning tips
- Assembly demo video
- Quick reference card
Cost-effective
- Bolt-down package
- Excellent thermal performance
- Flexible operating voltage
- PCB is suitable for designs at different frequencies

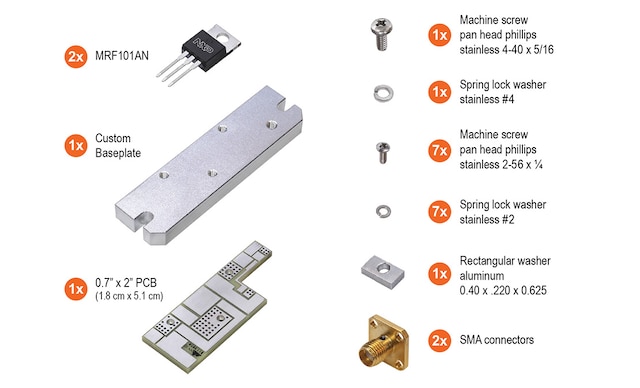

Kit includes
- Two MRF101AN 50 V RF power LDMOS transistors
- Custom fabricated baseplate
- 0.7″ x 2″ PCB
- Two SMA connectors
- Hardware
- Quick reference card
Supported Devices
- MRF101AN: 100 W CW over 1.8-250 MHz, 50 V Wideband RF Power LDMOS Transistor
