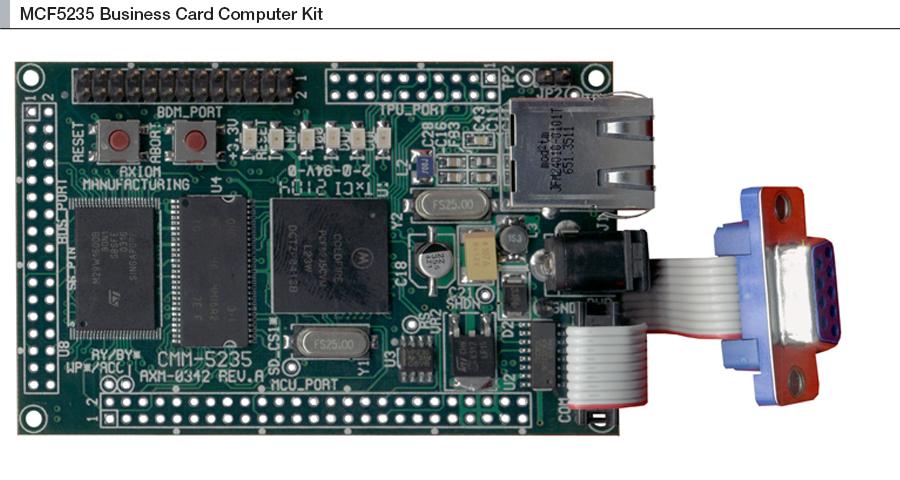

MCF5235 Business Card Computer Kit
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.
The M5235BCCKIT offers a complete low-cost method for evaluation the NXP® MCF5235 ColdFire® microprocessor. In addition to the M5235BCC module, the M5235BCCKIT includes a P&E wiggler cable, a CE certified power supply, and associated components needed to run right out of the box.
About the size of a business card (3.5 inches x 2.2 inches), the M5235BCC module comes with 2 Mbytes of flash, 16 Mbytes of SDRAM, a 10/100 BaseT Ethernet port, and an award winning ColdFire debug module. Open source GNU tools and an open source TCP/IP stack is also available along with an available RTOS. NXP offers both the M5235BCCKIT and the stand-alone M5235BCC.
製品詳細
Features
Processor
- MCF5235 CPU
Memory
- 2M Byte Flash (16 bit, external)
- 16M Bytes SDRAM (32 bit, external)
Connectivity
- Serial ports, DB-9 Connectors
- 10/100TX Ethernet Port w/ RJ45 Connector
Power Management
- Regulated +3.3V and +1.5V power supply w/ indicator
- Power Input: +5 - +30VDC, 12VDC typical
- Current Consumption: 120ma @ 12VDC input typical (100Mhz clock)
- 4 status Indicators, Auto MDI-X crossover.
Size
- Board Size 3.5” x 2.2 inches w/ 4 x #2 mounting holes
