ISDN Single-Chip NT1 Evaluation Kit (Discontinued)
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The MC145576EVK has been discontinued.
Suggested replacement: none.

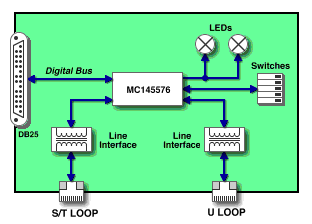

This evaluation board has been designed to demonstrate the MC145576 Single Chip NT1.
The device on the board may be configured in Basic NT1 mode, or as a Smart NT1, which provides terminal access to the MC145576 via IDL/SCP or GCI interfaces.
The MC145576EVK is powered by an external 5 V power supply. A separate connector can be used to provide +40 V to the TE through the S/T line (separate grounds are provided).
Archived content is no longer updated and is made available for historical reference only.
