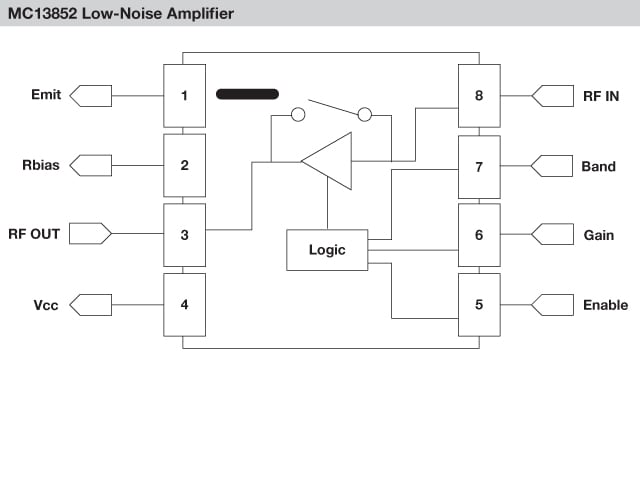

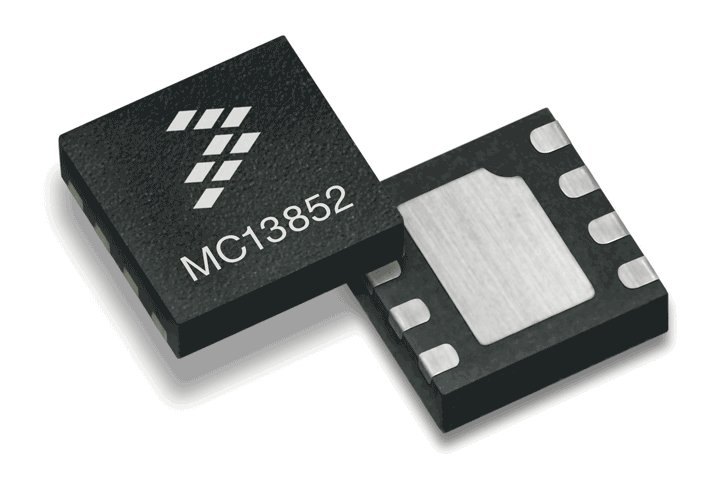

The MC13852 is a cost-effective, high IP3 low-noise amplifier (LNA) with low noise figure. This is the lower application frequency version of the MC13851. An integrated bypass switch is included to preserve high input intercept performance in variable signal strength environments and boosts dynamic range. On-chip bias circuitry offers low system cost. The input and output match are external to allow maximum design flexibility. External resistor used to set device current enables balancing required linearity with low current consumption. Gain is optimized for applications >1000 MHz. The MC13852 is fabricated with Our advanced RF BiCMOS process using the eSiGe:C module and is available in the 2x2 mm MLPD-8 leadless package, offering a small, low height, easy-to-solder solution for applications with tight printed circuit board placement requirements.
Evaluation kits are available for this part to speed your design effort. These evaluation kits include a fully characterized evaluation board with data, circuit schematic, BOM and design information. Each evaluation kit is specific to an application frequency. For the MC13852 there are two evaluation kits available:
Contact Sales or Marketing to order your evaluation kit.
Ideal for use in any RF product that operates between 400 MHz and 1 GHz, and may be applied in:
