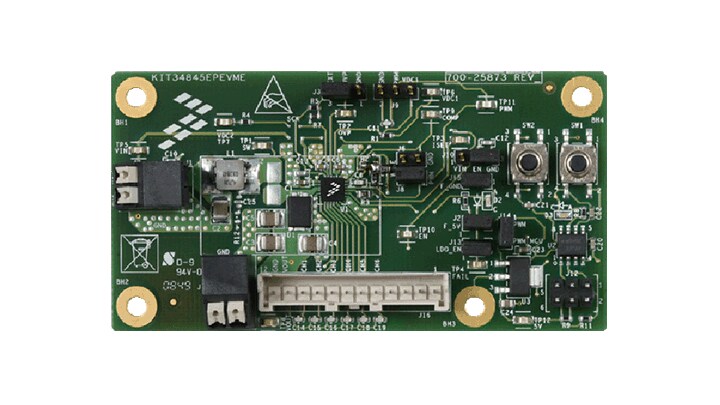

Evaluation Kit - 34845, LED Backlight Driver, Power Supply
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Evaluation kit for the 34845 products, which represent high efficiency, LED drivers for use in backlighting LCD displays from 10” to 17”+. Operating from supplies of 5.0 V to 21 V, the 34845 series is capable of driving up to 16 LEDs in series in each 6 strings. The LED current tolerance in the 6 strings is within ±2% and is set using a resistor to GND.
PWM dimming is performed by applying a PWM input signal to the PWM pin which modulates the LED channels directly. The integrated boost converter uses dynamic headroom control to automatically set the output voltage.
製品詳細
Features
Power Management
- Input voltage of 5.0 to 21 V
- Boost output voltage up to 60 V
- 2.0 A integrated boost FET
- Programmable LED current between 3.0 mA and 30 mA
- Fixed boost frequency to 600 kHz or 1.2 MHz
- OTP, OCP, UVLO fault detection, LED short/open protection
