Gerber files for the KIT33664EVB Evaluation board
- 製造終了
- Evaluation Board, MC33664, Isolated Network High Speed Transceiver
Evaluation Board, MC33664, Isolated Network High Speed Transceiver
KIT33664EVB アラートの受信
- アーカイブス
- このページには、製造中止になった製品に関する情報が含まれています。仕様および情報は、過去の参照用にのみ提供されています。
KIT33664EVB is no longer manufactured but is replaced by KIT33664AEVB.

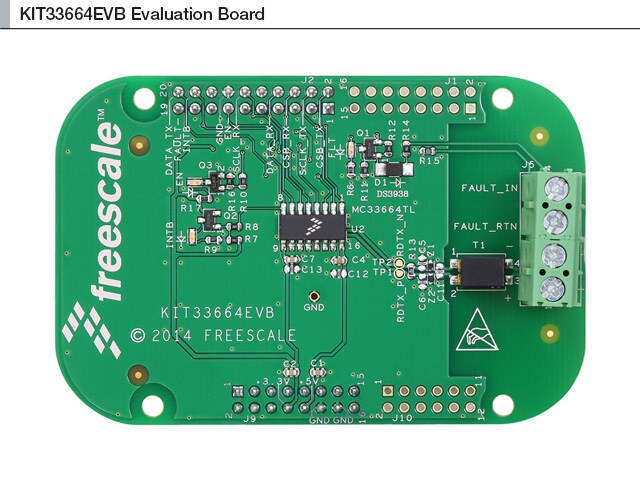

This Evaluation board features the MC33664TL a transceiver physical layer transformer driver designed to conveniently interface a microcontroller to a high speed isolated communication network. MCU SPI data bits are directly converted to pulse bit information and transferred to the bus network.
Follower response messages use the same structure to send pulse bit information to the 33664TL which is then converted to a SPI bit stream sent back to the MCU.
This board works in conjunction with the MC33771 Battery Cell Controller IC. The MC33771 is a lithium ion Battery Cell Controller IC designed for automotive applications, such as hybrid electric (HEV) and electric vehicle (EV) systems as well as industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS) systems.
Archived content is no longer updated and is made available for historical reference only.
製品詳細
Features
- 2.0 Mbps isolated network communication rate
- Dual SPI architecture for message confirmation
- Robust conducted and radiated immunity with wake-up
- 3.3 V and 5.0 V compatible logic thresholds
- Engineered for 5.0 meter, 15 node system
- Low sleep mode current with automatic bus wake-up
- Ultra-low radiated emissions
