9-18V Four Output, Multi-Purpose Switching Power Supply
MC34700 removed from active portfolio. Possible Replacement Part: PF3000.

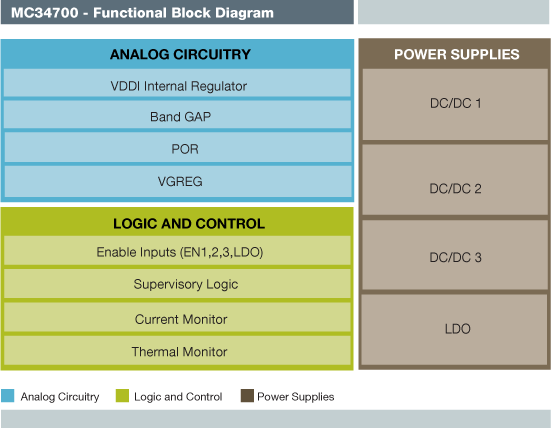

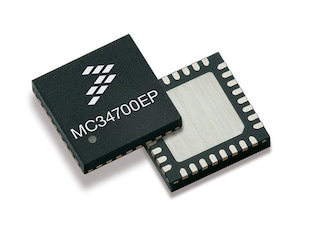

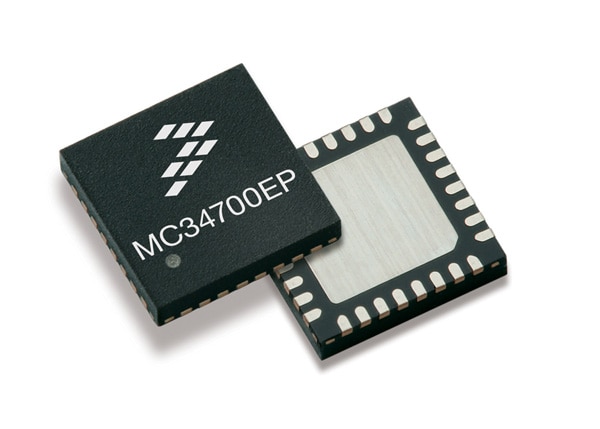

The NXP® MC34700 is a compact, high-efficiency power supply with on-chip power MOSFETs that features three step-down switching regulators and one low dropout linear regulator.
- The switching regulators use voltage-mode control with external compensation, allowing flexibility in optimizing the performance of the MC34700
- Ideal for space-constrained applications where multiple power rails are required and simplicity of design and implementation of the power supply is necessary
- Protection features ensure robust and reliable operation
- Fixed switching frequency, internal soft-start, and internal power MOSFETs enable rapid power supply design and development
