36 V Industrial Low RDSON eXtreme Switch
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The NXP® 36XSD is part of a family of intelligent, dual high side eXtreme switches for 36 V systems. This family offers devices with current capability from one to 12 A DC that are fully compatible in footprint and software within the PQFN subfamily.
- Each output can be programmed for any kind of loads, including lamps, LEDs, motors or solenoids, which allows you to design a flexible module that can become specific and optimized for a given application through software
- Provides robust design, intelligence and safety needed for industrial applications up to 36 V supply voltage
- With increased integration, the switch drives lightweight, smaller systems and a lower component count
- Easy Tower® System eXtreme Switch module configuration

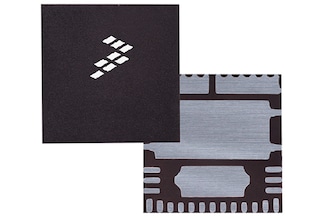

24PQFN PRODUCT
製品詳細
Features
System Features
- Up to 12 A steady-state current per channel
- Separate bulb and DC motor latched over-current handling
- Sleep mode with minimal supply current (< 10 µA @ 24 V)
- Individually programmable internal/external PWM clock signals
- Overcurrent, short-circuit and overtemperature protection with programmable auto-retry functions
- Accurate temperature and current sensing
- Open-load detection (channel in OFF and ON state), also for LED applications (7.0 mA typ.)
- Normal operating range: 8.0 - 36 V, extended range: 6.0 - 58 V
- 3.3 V and 5.0 V compatible 16-bit SPI port for device control, configuration and diagnostics at rates up to 8.0 MHz
- Compatible PCB footprint and SPI software driver among the family
Product Longevity Program
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch
比較表
36XSD Family Comparison
| Product | Datasheet | # of outputs | RDSon (mOhm) | Package | Suggested tool |
| MC06XSD200 | Datasheet [English] | Dual | 2 x 6.0 | PQFN 23 | KIT06XS4200EVBE |
| MC10XSD200 | Datasheet [English] | Dual | 2 x 10.0 | PQFN 23 | KIT10XS4200EVBE |
| MC16XSD200 | Datasheet [English] | Dual | 2 x 16.0 | PQFN 23 | KIT20XS4200EVBE |
| MC22XSD200 | Datasheet [English] | Dual | 2 x 20.0 | SOIC-EP 32 | KIT22XS4200EKEVB |
| MC50XSD200 | Datasheet [English] | Dual | 2 x 50.0 | SOIC-EP 32 | KIT50XS4200EKEVB |
