FRDM-17531AEJEVB
-
FRDM-17531AEJE.
- FRDM-17531AEJEVB board
- Quick start Guide
- Connectors for FRDM attach boards
設計・ファイル
1 設計・ファイル
-
プリント基板と回路図
Gerber files for the FRDM-17531AEJEVB
Freedom Expansion Board for MC17531AEJ Dual H-Bridge
FRDM-17531AEJEVB アラートの受信

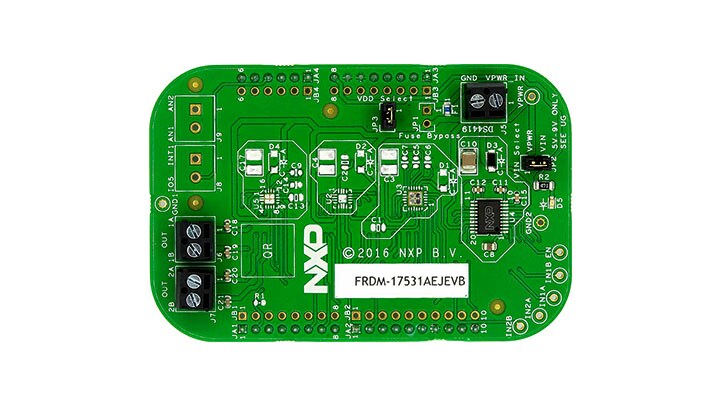

This Freedom evaluation board supports the MPC17531A two-channel, H-Bridge driver for single-stepper motor or two brushed DC motors. It provides a small, low-power, cost-effective evaluation and development system for quick application prototyping and demonstration of Kinetis® MCU families.
- Offers an easy-to-use mass-storage device mode flash programmer, virtual serial port and classic programming and run-control capabilities.
- Includes built-in shoot-through current protection and an undervoltage shutdown function
- Lowers energy consumption and helps extend battery life
- Efficiently drives many types of micromotors with low power dissipation
- Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development
製品詳細
Features
General Specifications
- Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)
Connectivity
- Screw terminals for motor leads and power connections
Power Management
- Fuse protected
- Built in regulator for logic power supply
- Board power is separate from host CPU power
Components
- General-purpose LED driven from FRDM-KL25Z
購入オプション
ドキュメンテーション
クイック・リファレンス ドキュメンテーションの種類.
設計・リソース
ソフトウェア
3 ソフトウェア・ファイル
-
組込みコンポーネント
Embedded Component: Low Voltage H-Bridge
-
特定用途
LVMC-Steppermotor-setup.exe
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
サポート
関連ハードウェア:
Kinetis® KL14/KL15/KL24/KL25 MCU向けFreedom開発プラットフォーム
- NXP 投稿者
- FRDM-KL25Z
