NXH2265UK: NFMI Radio for Wireless Audio and Data Streaming

NXH2265

画像にカーソルを合わせると拡大表示されます。

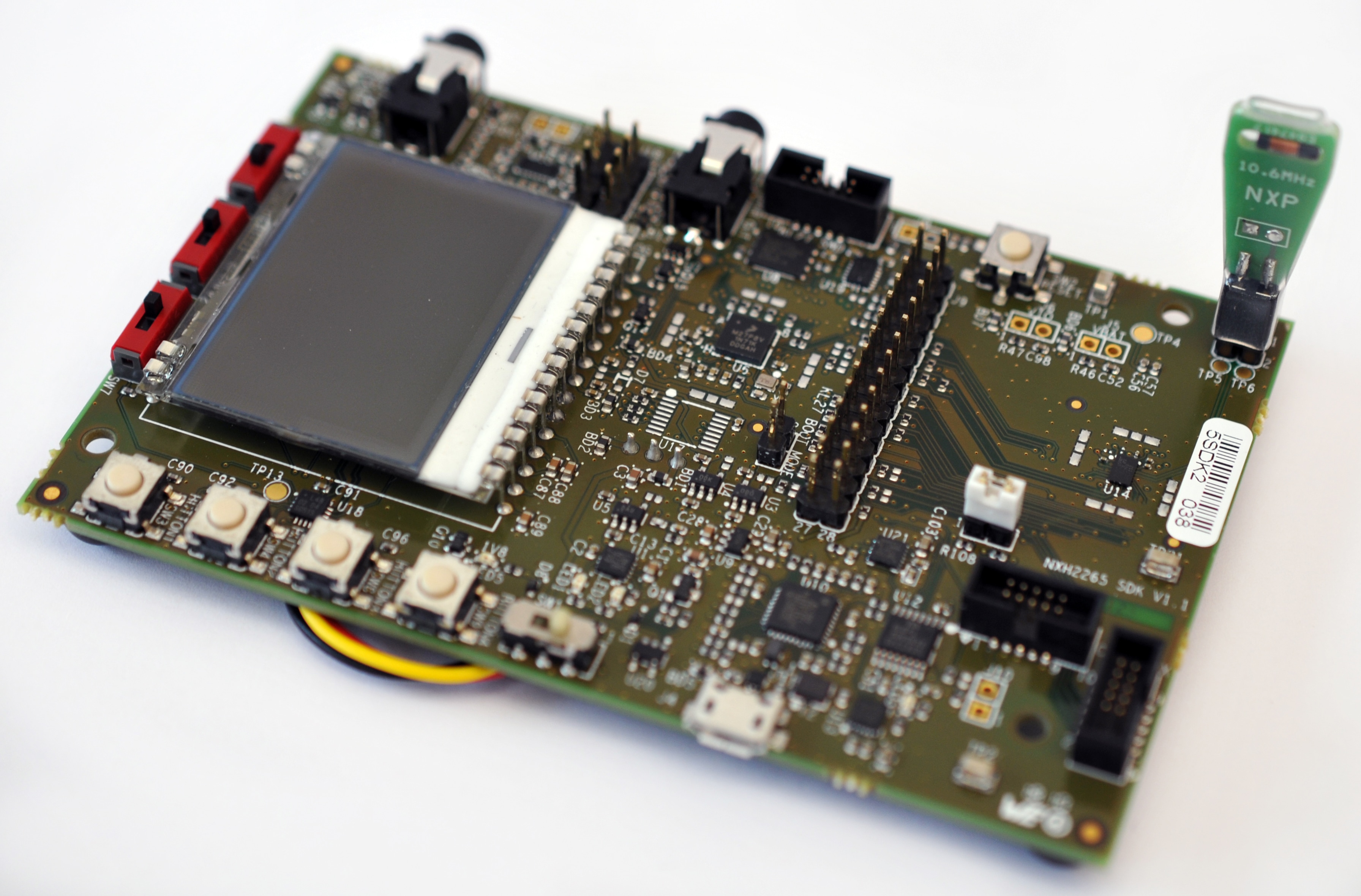

The NxH2265 is an ultra-low-power wireless single-chip solution optimized for audio and data communication. It uses a magnetic induction radio to provide a robust, tightly contained body area network around each user. It uses Near Field Magnetic Induction (NFMI) for wireless audio and data streaming.

It offers a fully integrated Arm® Cortex®-M0-based control subsystem, a Magnetic Induction (MI) transceiver, an audio data path, a power management subsystem, and a set of standard interfaces.

The audio data path is based on hardware-accelerated audio processing blocks and is enhanced with a DSP. The integrated power management subsystem supports multiple power domains and requires a stable, fixed input supply.

The device is available in a Wafer-Level Chip-Scale (WLCSP) package.

製品詳細

セクションを選択:

Features

Controller subsystem

  • Customer programmable Arm Cortex-M0 ultra low power, for system configuration and control
  • I2C-bus/SPI follower control interface
  • Flexible interfaces: UART, GPIO, SWD

Magnetic induction transceiver

  • 596 kbit/s raw throughput
  • Carrier frequency of 10.579 MHz
  • On-chip tuning of coil resonator tank
  • Programmable transmit power
  • Integrated AGC
  • Operation from internal oscillator
  • Optimized protocol for low latency ear-to-ear communication
  • Embedded network protocol for up to 15 devices

Audio data path

  • I2S-bus audio interface
  • Support for multiple audio sample frequencies up to 48 kHz
  • Integrated MAC accelerator for MI radio
  • Integrated audio G.722 codec for up to two audio channels
  • Integrated latency controller for one RX channel
  • Integrated adaptive sample rate converter for one RX channel Integrated CoolFlux DSP® with SBC codec

Power management subsystem

  • Integrated supply management based on a stable, fixed input supply

Power consumption

  • Power-down: 5 μA
  • Sleep: 150 μA
  • Carrier detect: 180 μA
  • Mono audio streaming - receive: 1700 μA (fs = 16 kHz; G.722)
  • Mono audio streaming - transmit: 1600 μA (fs = 16 kHz; G.722)
  • Bidirectional audio streaming: 3000 μA (fs = 48 kHz; SBC)
  • Support for flexible slot allocation of the radio enabling better power tuning over the different use cases
  • Integrated ultra-low-power oscillator and timer used in low-power modes

    • Supports multiple low-power modes, with typical current consumption:

Package

  • WLCSP40 with dimensions of 2.25 mm × 3.45 mm (7.76 mm2)
  • Flexible I/O switch matrix with 19 pins
  • Configurable supply level for I/O
  • 40 bumps with a minimum pitch of 400 μm
  • Backside coating
