Note: QN9090/30 is preferred for any
new Bluetooth LE design.

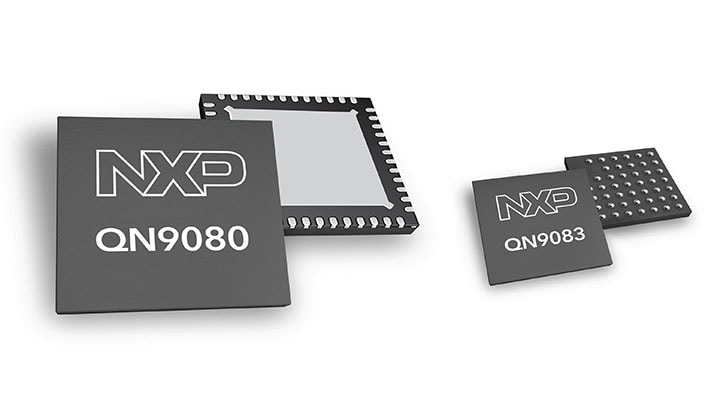

QN908x is an ultra-low-power, high-performance and highly integrated Bluetooth Low Energy solution for
Bluetooth® Smart applications such as sports and fitness, human interface devices, and app-enabled
smart accessories. It is specially designed for wearable electronics with a small capacity battery.

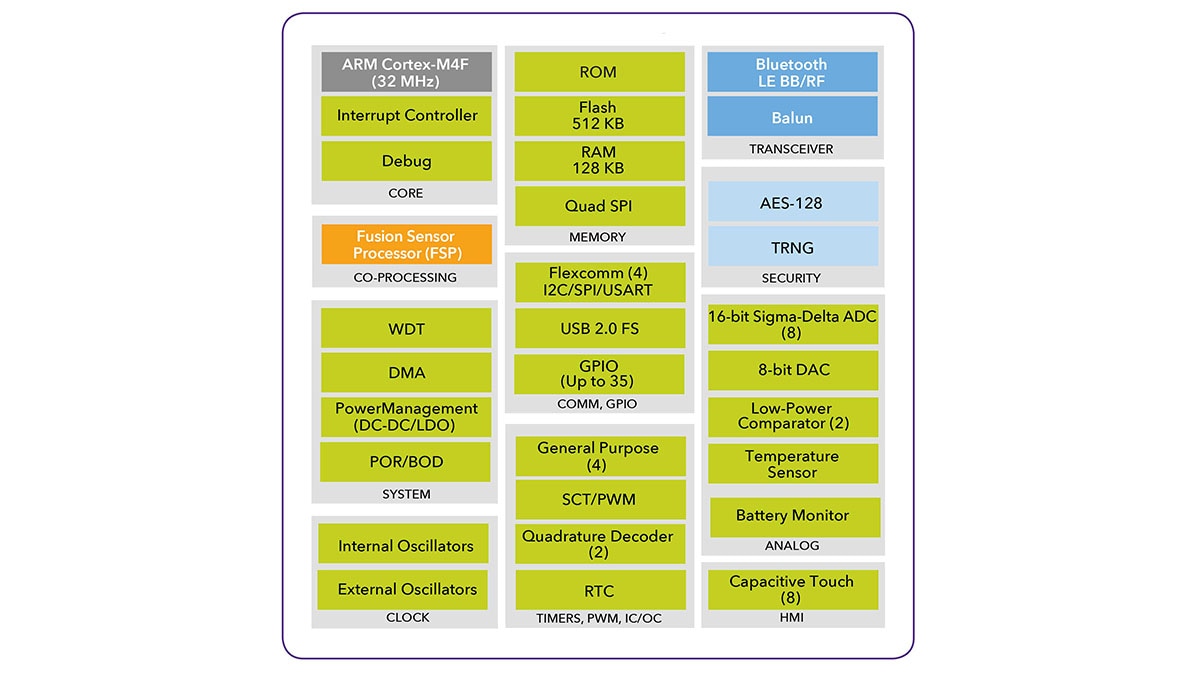

QN908x integrates a Bluetooth Low-Energy radio, controller, protocol stack and profile software on a single chip,
providing a flexible and easy to use Bluetooth Low Energy SoC solution. It also includes a high-performance MCU
(32-bit Arm® Cortex®-M4F), on-chip memory, and peripherals for users to develop a
truly single-chip wireless solution.
Additional system features include fully integrated DC-DC and LDO, low power sleep timer, battery monitor, 16-bit
high-resolution general purpose ADC, and GPIOs, to further reduce overall system size and cost. QN908x operates with
a power supply range of 1.8 V to 3.6 V and has very low power consumption in all modes. It enables long lifetime in
battery-operated systems while maintaining excellent RF performance.
