OM7867
-

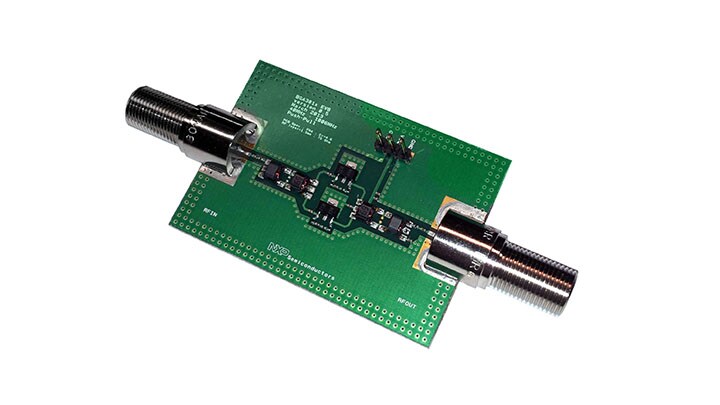

Demoboard for BGA3015, 40 MHz to 1006 MHz push-pull amplifier application.
- RF board matched according to datasheet specification
- BGA3015 samples
設計・ファイル
1 設計・ファイル
-
Design Tool
Board layout files
Demoboard for BGA3015, 40 MHz to 1006 MHz push-pull amplifier application
OM7867 アラートの受信

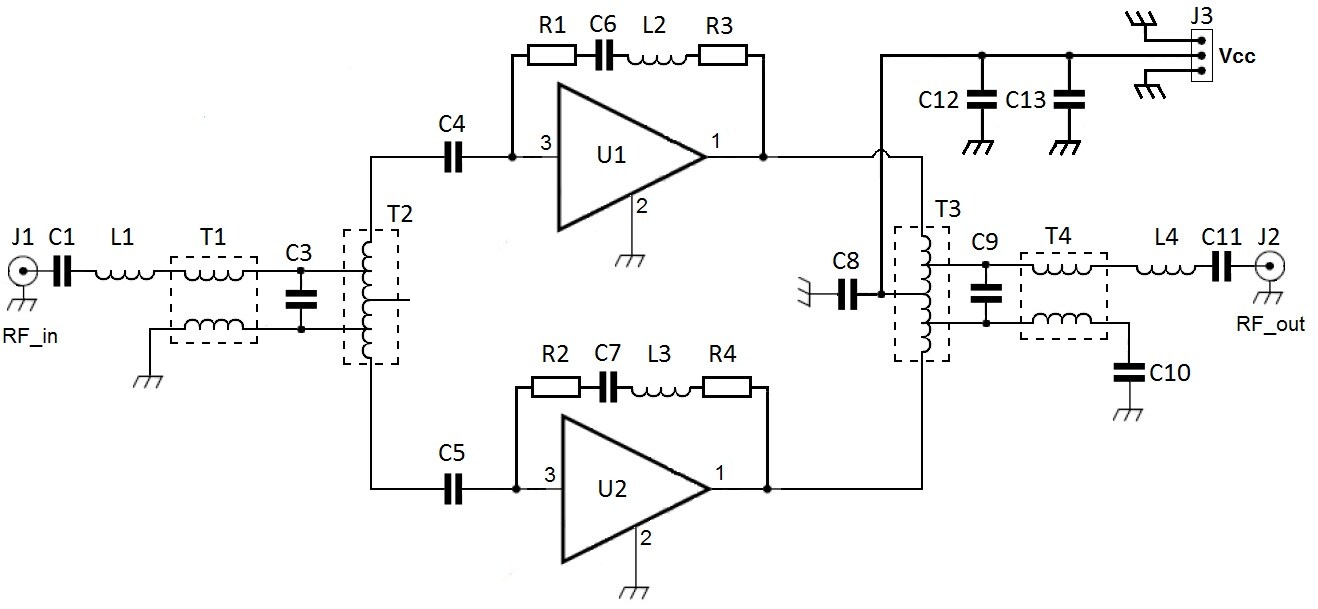

This evaluation board uses two NXP’s BGA3015 drop amplifiers in a push-pull configuration, resulting in a better second order distortion (IP2O and CSO) and higher output power.
製品詳細
対応製品
RF
Wideband Amplifiers GP & Extreme
- BGA3015: 1 GHz 15 dB Gain Wideband Amplifier MMIC
Features
- Evaluation of electrical DC and RF performance like IDC, S-Parameters, Distortion levels, P-1 dB, Noise Figure
- PCB layout evaluation
