OM7862
-
Demoboard for BGA3012, 5 MHz to 300 MHz 12 dB gain reverse amplifier application.
- RF board matched according to datasheet specification
- BGA3012 samples
設計・ファイル
1 設計・ファイル
-
Design Tool
Board layout files
Demoboard for BGA3012, 5 MHz to 300 MHz 12 dB gain reverse amplifier application
OM7862 アラートの受信

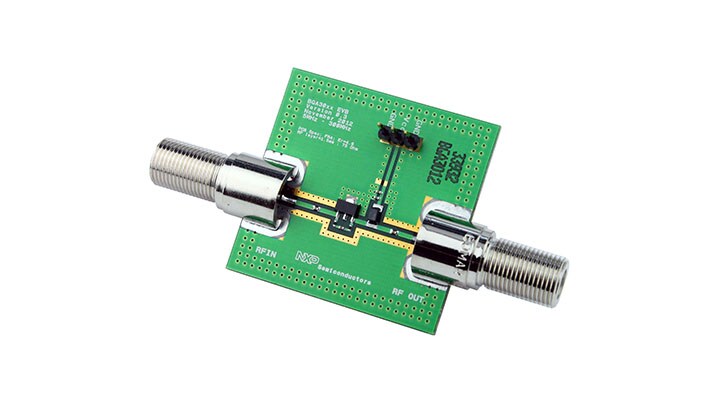

The BGA3012 CATV drop amplifier kit simplifies the evaluation of the BGA3012 wideband amplifier. It contains a RF board matched to 75 Ohm from 5 MHz up to 300 MHz with F-connectors. The board operates between 5 V and 8 V. The kit also provides BGA3012 samples for prototyping, device models and product documentation.
製品詳細
対応製品
RF
Wideband Amplifiers GP & Extreme
- BGA3012: 1 GHz 12 dB Gain Wideband Amplifier MMIC
Features
- Evaluation of electrical DC and RF performance like IDC, S-Parameters, Distortion levels, P-1 dB, Noise Figure
- Device Models and S-parameters
- PCB layout evaluation
