This NCSW software is provided for historical reasons and is not considered suitable for new designs. NXP recommendation would be to use Linux instead of the NCSW

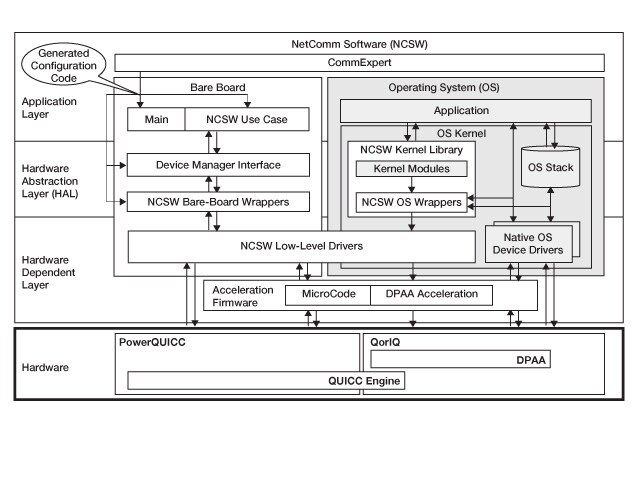

NetComm Software (NCSW) is a comprehensive package that supplies a variety of tools and software code to help develop networking solutions on supported PowerQUICC® and QorIQ® processor platforms.
Latest NCSW Releases by Platform | ||||||||||
Platform | MPC8306 | MPC8309 | MPC832x | MPC834x | MPC836x | |||||
NCSW Release | GA 4.4 | GA 4.4 | GA 4.0 | GA 2.3 | GA 4.4 | |||||
Platform | MPC837x | MPC8568 | MPC8569 | P1020 | P1021 | |||||
NCSW Release | GA 4.0 | GA 4.0 |
GA 4.4
GA Linux 1.0 |
GA 4.2 | GA 4.4 | |||||
Platform | P1022 | P1017/P1023 | P3041 | P4080 | P5020 | |||||
NCSW Release | GA 4.4 | GA 4.7 | GA 4.7 | GA 4.7 | GA 4.7 | |||||
Platform | P2040/P2041 | P5040 | T4240 | B4860/B4420 | ||||||
NCSW Release | GA 4.7 | GA 4.7 | GA 4.7 | GA 4.7 |
Latest µCode by Packages | |||||
Name | Description | Supported Platforms | Supported Protocols | Revision | |
MPC8569 Rev 2 | MPC8569 Rev 2 RAM Package | MPC8569 | Eth, ATM, ML/MC PPP, PPP Mux, ESS7, POS, IMA, ATM2Eth, PPP2Eth, Eth2Eth, HC2Hdec, IP Fragmentation, IP Reassembly, Virtual Port IW, Longest Prefix Match, IP Sec, Burst Tolerance, Eth PQRL, 1588v2 | 8569Rev2_IRAM_1.9.1 | |
MPC830x | MPC830x IRAM Package | MPC830x | Eth (termination and hierarcy scheduler), IP Frag, UMCC, Enet Parser, HDLC, Timer | MPC830x_1-0-0 | |
AE B | ATM 2 Ethernet B | MPC836x
MPC8568 |
Eth, ATM, IMA, ATM2Eth, Eth2Eth, IP Reassembly, IP Fragmentation, Virtual Port IW | 836x_AE B 2.6.0
8568_AE B 2.6.0 |
|
AE G | ATM 2 Ethernet G | MPC836x
MPC8568 |
Eth, ATM, IMA, ATM2Eth, Eth2Eth, IP Fragmentation, Virtual Port IW | 836x AE G 0.0.1
8568 AE G 0.0.1 |
|
AE L | ATM 2 Ethernet L | MPC836x
MPC8568 |
Eth burst tolerance mode | 836x AE L 0.0.0
8568 AE L 0.0.0 |
|
AET F | ATM and Ethernet Termination | MPC836x
MPC8568 |
Eth, ATM, IMA, IP Fragmentation | 836x AET F 0.1.0
8568 AET F 0.1.0 |
|
E2E D | Ethernet 2 Ethernet D | MPC836x
MPC8568 |
Eth, Eth2Eth, HC2Hdec, IP Reassembly, IP Fragmentation, Virtual Port IW, Longest Prefix Match, 1588v2 | 836x E2E D 1.2.0
8568 E2E D 1.2.0 |
|
E2E POS | Ethernet 2 Ethernet over POS | MPC836x
MPC8568 |
Eth, Interworking, IP Reassembly, IP Fragmentation, Virtual Port, Hierarchical Scheduling, Longest Prefix Match, PCD and POS Multi-PHY termination | 836x E2E POS 0.0.1
8568 E2E POS 0.0.1 |
|
E2E WANGW | Ethernet 2 Ethernet WANG | MPC832x | Eth2Eth | 832x E2E WANGW 0.0.0 | |
P1021 A | P1021 | Slow Protocols, Eth, ATM, IP Fragmentation, UMCC, USB, IEEE 1588, HDLC, Timers | P1021 A 0.0.1 | ||
P1021 B | P1021 | Slow Protocols, ATM, IMA, UMCC, USB, IEEE 1588, HDLC, Timers, SAM | P1021 B 0.0.1 | ||
P1021 D | P1021 | Slow Protocols, Eth, ATM, UMCC, Enet Parser, Policer, HDLC, Timers | P1021 D 0.0.0 | ||
PAE C | PPP 2 Ethernet 2 ATM C | MPC836x
MPC8568 |
Eth, ATM, ML/MC PPP, PPP Mux, ESS7, IMA | 836x PAE C 1.4.1
8568 PAE C 1.4.1 |
|
PE A | PPP 2 Ethernet A | MPC836x
MPC8568 |
Eth, ML/MC PPP, PPP2Eth, Eth2Eth, HC2Hdec, IP Fragmentation, Eth PQRL, 1588v2 | 836x PE A 2.7.0
8568 PE A 2.7.0 |
|
PE B | PPP 2 Ethernet B | MPC836x
MPC8568 |
Eth, ML/MC PPP, PPP Mux, PPP2Eth, Eth2Eth, HC2Hdec | 836x PE B 2.9.0
8568 PE B 2.8.2 |
|
PE E | PPP 2 Ethernet E | MPC836x
MPC8568 |
Eth, ML/MC PPP, PPP2Eth, Eth2Eth, IP Reassembly, Virtual Port IW | 836x PE E 0.0.3
8568 PE E 0.0.3 |
|
PE I | PPP 2 Ethernet I | MPC836x
MPC8568 |
Eth, ML/MC PPP, POS (MPHY Only), Eth2Eth, IP Reassembly, IP Fragmentation, Virtual Port IW, Longets Prefix Match | 836x PE I 0.0.0
8568 PE I 0.0.0 |
|
PE K | PPP 2 Ethernet K | MPC836x
MPC8568 |
PPP 2 PPP Interworking | 836x PE K 0.0.2
8568 PE K 0.0.2 |
|
POS | POS | MPC836x
MPC8568 |
POS | 836x POS 0.1.0
8568 POS 0.1.0 |
|
QMC SCDis | QMC w/o Sub Channeling | MPC832x
MPC836x |
QMC | 832x QMC SCDis 0.0.0
836x QMC SCDis 0.0.0 |
|
QMC SCEn | QMC with Sub Channeling | MPC832x
MPC836x |
QMC | 832x QMC SCEn 0.0.0
836x QMC SCEn 0.0.0 |
|
Slow QELite | Slow QELite Protocols | MPC832x | Various | 832x Slow QELite 1.0.2 | |
SWUART | Software UART | MPC836x | UART | 836x Soft UART 0.1.2 | |
SRIO | MPC8568 | SRIO | 8568 SRIO 0.0.0 | ||
UMCC QELite | UMCC on QELite | MPC832x
MPC836x |
UMCC | 832x UMCC Rev 1.1 rel 0.0.0
836x UMCC Rev 2.1 rel_0.0.0 |
|
ESS7 | Enhanced SS7 | MPC8260/80 | SS7 MTP-2 supporting: ITU-T Q.703 sections 3, 4 and 10; ANSI T1.111; and Japanese JT Q.703 | ESS7 0.3 | |
SS7 | SS7 | MPC826x/7x/8x | SS7 | SS7 0.7 |
