i.MX 93 Applications Processor Family – Arm® Cortex®-A55, ML Acceleration, Power Efficient MPU

  • 製造開始前
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.
    i.MX 93 family pre-production samples and EVKs along with technical support available for early access customers through a paid program. For more info, please contact Beta.iMX@nxp.com for more details.

画像にカーソルを合わせると拡大表示されます。

製品詳細

セクションを選択:

ブロック図

i.MX 93 Processors Family

i.MX 93 Processors Family Block Diagram

Features

Multicore Processing

  • 1-2x Arm® Cortex®-A55 @ 1.7 GHz
  • Arm Cortex-M33 @ 250Mhz
  • Arm® Ethos U-65 microNPU
  • EdgeLock® secure enclave

Connectivity

  • 2x USB 2.0 Type C with PHY
  • 2x Gb Ethernet: AVB & IEEE 1588 for sync, and EEE for low power. 1 with TSN
  • 2x CAN-FD
  • 8x UART/USART/Profibus, 8x I2C, 8x SPI, 2x I3C
  • 1x 4-ch, 12-bit ADC
  • 2x 32-pin FlexIO interfaces (camera, bus or serial I/O)

External Memory

  • Up to 3.7GT/s x16 LPDDR4/LPDDR4X (with Inline ECC)
  • 3x SD 3.0/ SDIO3.0/ eMMC5.1
  • 1x Octal SPI, including support for SPI NOR and SPI NAND memories

Graphics

  • 2D GPU: blending/composition, resize, color space conversion

Display Interfaces

  • 1x 1080p60 MIPI-DSI (4-lane, 1.5Gbps/lane) with PHY
  • 1x 720p60 LVDS (4-lane)
  • 18-bit parallel RGB

Camera Interfaces

  • 1x 1080p60 MIPI-CSI (2-lane, 1.5Gbps/lane) with PHY
  • 8-bit parallel YUV/RGB

Audio

  • 7x I2S TDM (32-bit @ 768KHz), SPDIF Tx/Rx
  • 8 channel PDM microphone input
  • MQS: Medium Quality Sound output (sigma-delta modulator)

Operating Systems

  • Linux® OS
  • FreeRTOS
  • Greenhills
  • QNX
  • VxWorks

Packaging

  • 11x11 mm2 0.5 mm pitch, 9x9 mm2 0.5 mm pitch

Temp Range

  • Up to -40C to 125C

ドキュメンテーション

クイック・リファレンス ドキュメンテーションの種類.

1 ドキュメント

設計・リソース

ハードウェア

1-5 の 10 ハードウェア提供

  • 評価・開発ボード

    EVK-JODY-W2

  • テストアクセサリとデバッガ

    Arm DSTREAM

  • 組込みボードソリューション

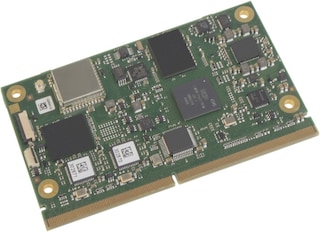

    MSC SM2S-IMX93

  • 組込みボードソリューション

    i.MX 93 Pico ITX SBC

  • 組込みボードソリューション

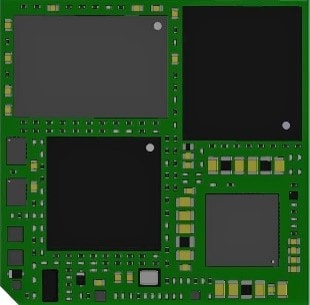

    i.MX 93 OSM-LF LGA Module
