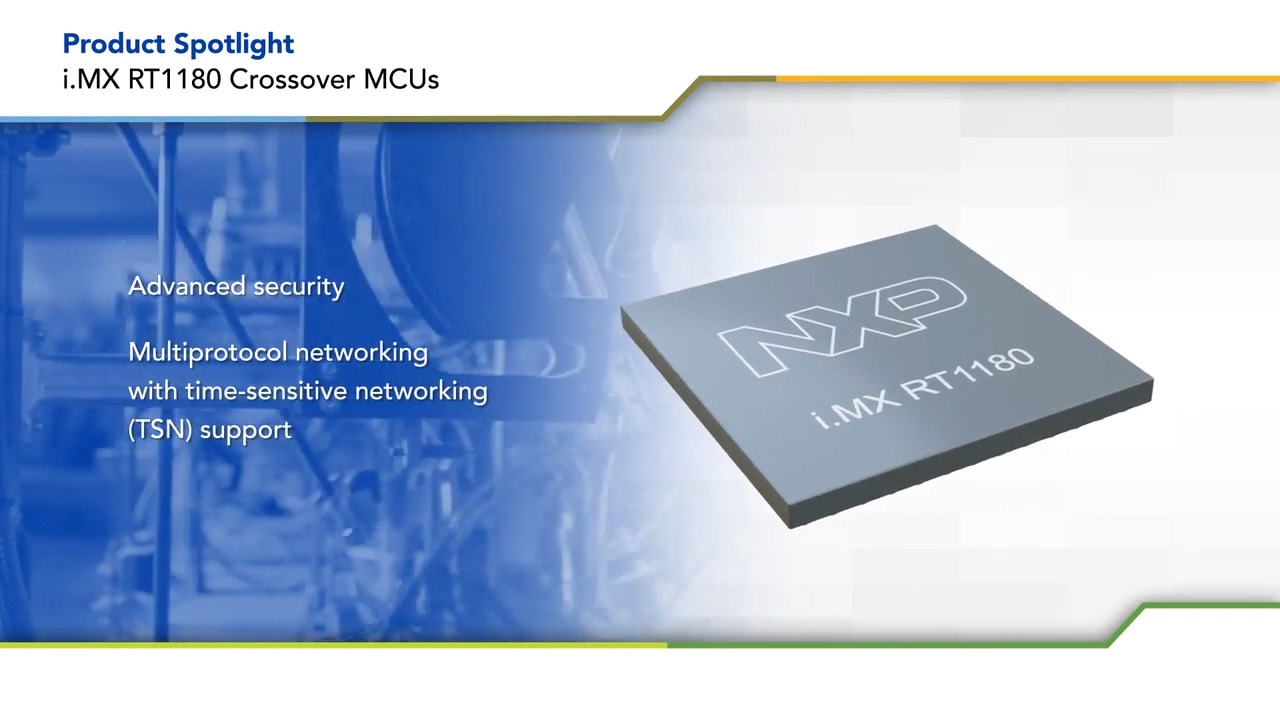

i.MX RT1180: Crossover MCU with TSN Switch and EdgeLock®

i.MX-RT1180

動画の上をクリックすると再生されます。

i.MX RT1180 Crossover MCUs are dual-core, real-time microcontrollers (MCUs) featuring an Arm® Cortex®-M7 and Arm® Cortex®M33 for high performance and real-time functionality. The i.MX RT1180 includes an integrated Gbps time-sensitive networking (TSN) switch and EtherCAT Slave Controller making it ideal for industrial and automotive communication applications.

The i.MX RT1180 CM7 operates at up to 800 MHz and the CM33 up to 240 MHz with 1.5 MB on-chip RAM. The family supports multiple protocols, bridging communications between real-time Ethernet and Industry 4.0 systems. The i.MX RT1180 offers advanced security with the integrated EdgeLock® Secure Enclave.

The i.MX RT1180 family is supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to enable rapid development.

製品詳細

セクションを選択:

ブロック図

i.MX RT1180 Crossover MCU

i.MX RT1180 Crossover MCU
図を取得する PDF

Features

Multicore Processing

  • Arm Cortex-M7 at 800 MHz + Arm Cortex-M33 at 240 MHz
    • Optional: single core Arm Cortex-M33

Software and Tools

  • MCUXpresso ecosystem support
    • Selection of IDE choices
    • Pin, clock, peripheral, security and memory config tools
    • Security programming and provisioning tools
    • Software development kit (SDK)
  • Zephyr RTOS support

Networking

  • First real-time microcontroller (MCU) with an integrated Gbps time-sensitive network (TSN) switch supporting multiple protocols bridging communications between existing systems and Industry 4.0
    • Real-time industrial Ethernet protocols such as Profinet, Ethernet/IP, EtherCAT, CC-Link IE Field, HSR and more
    • Latest generation of TSN standards compliant to IEC 60802 for industrial automation
    • TSN based protocols such as OPC UA Pub-Sub, Profinet over TSN and CC-Link IE TSN
  • Up to 5 Gbps ports including 4x ports on the TSN switch (Layer 2) and 1x port on the TSN endpoint controller
  • L2 management with advanced flow control features including port counters, filters and more

Advanced Security

  • First crossover MCU with an integrated EdgeLock® Secure Enclave
    • Preconfigured, self-managed, autonomous security subsystem, easing complexity of implementing robust, system-wide security for networked, industrial IoT applications
  • Providing component level foundation for IEC 62443 system compliance
  • Root of trust requirements in complex networked systems with secure boot, secure key mechanism and high performance crypto
  • System-level physical tamper monitoring with secure RTC and 10 tamper pins

On-Chip Memory

  • Up to 1.5 MB SRAM (ECC protected) with 512 KB of TCM for Arm Cortex-M7 and 256 KB of TCM for Arm Cortex-M33

Analog

  • High-speed 16-bit analog to digital converters
  • Advanced timer/PWM and delta-sigma demodulators

Temperature and Qualifications

  • Robust extended industrial qualification (-40°C to 125°C)
  • Automotive AEC-Q100 qualification

Packaging

  • 289 MAPBGA, 14 x 14 mm, 0.8 mm pitch
  • 144 MAPBGA, 10 x10 mm, 0.8 mm pitch
