OM13053
-
LPC812-LPCXpresso Board.
設計・ファイル
1 設計・ファイル
-
プリント基板と回路図
LPCXpresso LPC800 design support
LPC812-LPCXpresso Board
OM13053 アラートの受信
This board is no longer in production. The replacement for this board is the OM13055 (LPCxpresso812MAX)

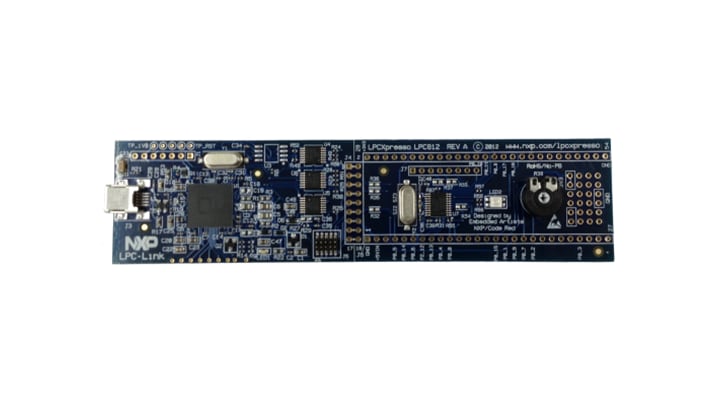

The LPC812-LPCXpresso board with NXP®'s LPC812 Cortex-M0+ microcontroller is designed to make it as easy as possible to get started with your project. Combined with the the full-featured, easy-to-use Eclipse-based LPCXpresso IDE, the entire product design cycle for the LPC800 is supported.
The LPCXpresso development platform is jointly developed by NXP®, and Embedded Artists.
The order code for this board is OM13053
製品詳細
Features
Microcontroller
- NXP®'s LPC812 Cortex-M0+ microcontroller in TSSOP20 package
- 16 kB of Flash, 4 kB of Data Memory
- 12 MHz crystal for CPU
Connectivity
- UART header compatible with C232HD-DDHSP-0 cable (or similar) for In-System Programming
- All LPC812 pins available on expansion connector (2 x 27-pin rows, 100 mil pitch, 900 mil between rows)
- Embedded JTAG (LPC-LINK) functionality via LPCXpresso IDE
- LPC-LINK can be connected to external target processor after modifications to the LPCXpresso board
Power Management
- 3.15 V - 3.3 V external power, or from USB via onboard LPC-LINK JTAG probe
Components
- Potentiometer connected to ACMP_I1
- RGB LED connected to PIO0_7, PIO0_16 and PIO0_17
