The OM6273 is the demo board for the SC16IS752/762. The SC16IS752/SC16IS762 is an I2C-bus/SPI bus interface to a dual-channel high-performance UART offering data rates up to 5 Mbit/s, low operating and sleeping current; it also provides the application with 8 additional programmable I/O pins. The device comes in very small HVQFN32 and TSSOP28 packages, which makes it ideally suitable for hand-held, battery-operated applications. This chip enables seamless protocol conversion from I2C-bus/SPI to RS-232/RS-485 and is fully bidirectional.
製品詳細

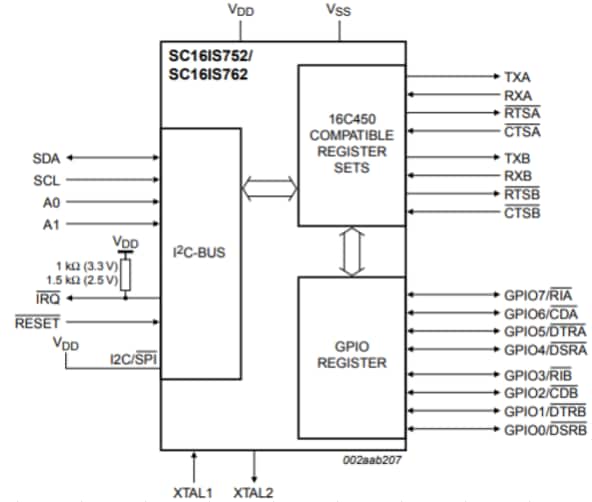

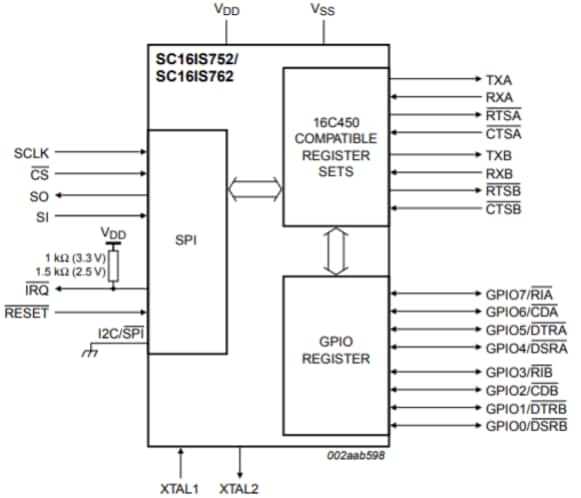

ブロック図
対応製品
ペリフェラル＆ロジック
ブリッジ
- SC16IS752_SC16IS762: Dual UART with I²C-Bus/SPI Interface, 64 Bs of Transmit and Receive FIFOs, IrDA SIR Built-In Support
Features
Key Features
- Industrial temperature range: -40 °C to +95 °C
- Fully compatible with industrial standard 16C450 and equivalent
- Baud rates up to 5 Mbit/s in 16x clock mode
- Auto hardware flow control using RTS/CTS
- Auto software flow control with programmable Xon/Xoff characters
- Single or double Xon/Xoff characters
- Automatic RS-485 support (automatic follower address detection)
- Up to eight programmable I/O pins
- RS-485 driver direction control via RTS signal
- RS-485 driver direction control inversion
- Built-in IrDA encoder and decoder supporting IrDA SIR with speeds up to 115.2 kbit/s
- SC16IS762 supports IrDA SIR with speeds up to 1.152 Mbit/s1
- Software reset
- Transmitter and receiver can be enabled/disabled independent of each other
- Receive and Transmit FIFO levels
- Programmable special character detection
- Line break generation and detection
- Internal Loopback mode
-
Fully programmable character formatting
- 5-bit, 6-bit, 7-bit, or 8-bit character
- Even, odd, or no parity
- 1, 1½, or 2 stop bits
Connectivity
- Dual full-duplex UART
- I2C-bus or SPI interface selectable
- 64 bytes FIFO (transmitter and receiver)
Power Management
- 3.3 V or 2.5 V operation
- Sleep current less than 30 µA at 3.3 V
- 5 V tolerant inputs
Package
- HVQFN32
- TSSOP28
