NX3DV42GU IBIS model
Dual High-Speed USB 2.0 Double-Pole Double-Throw Analog Switch
NX3DV42 アラートの受信

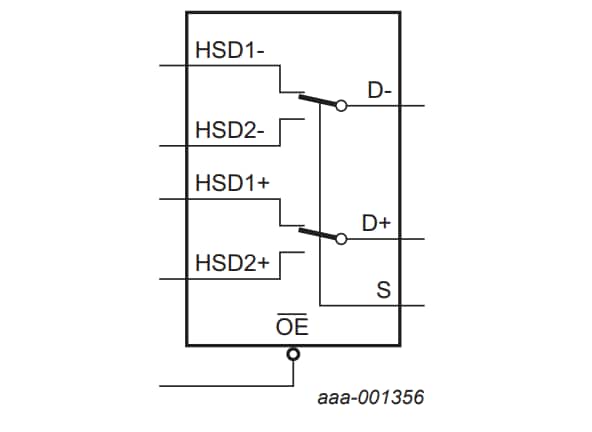

The NX3DV42 is a double-pole double-throw analog switch suitable for use as an analog or digital multiplexer/demultiplexer. Its wide bandwidth and low bit-to-bit skew allows the NX3DV42 to pass high-speed differential signals with good signal integrity. Its high channel to channel crosstalk rejection results in minimal noise interference. The bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480 Mb/s). It consist of two switches, each with two independent input/outputs (HSDn+ and HSDn-) and a common input/output (D+ or D-). One digital inputs (S) is used to select the switch position. When pin OE is HIGH, the switches are turned off. Schmitt trigger action at the select input (S) and enable input (OE) makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 3.0 V to 4.3 V.
製品詳細
Features
General Features
- Supply voltage range from 3.0 V to 4.3 V
- 4 Ω typical ON resistance
- 7.3 pF typical ON capacitance
- 950 MHz typical bandwidth or data frequency
- Low crosstalk of -30 dB at 240 MHz
- Break-before-make switching
- 8 programmable inputs (switches to battery or ground) and 14 switch-to-ground inputs
- Typical standby current - VBATP = 30 uA and VDD = 10 uA
- Integrated battery and temperature sensing
ESD protection
- HBM JESD22-A114F Class 3A exceeds 4000 V
- CDM AEC-Q100-011 revision B exceeds 1000 V
- HBM exceeds 12000 V for power to GND protection
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Specified from -40 °C to +125 °C
Product Longevity Program
- This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The NX3DV42GU is included in the 15-year program
