SOT2283-1: FC-PQFN-COL24

概要

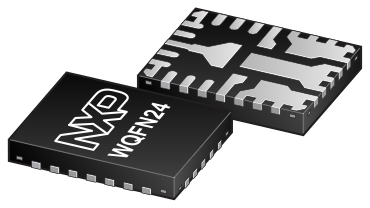

FC-PQFN-COL24, flip chip - plastic quad flat non-lead - chip on lead, 24 terminals, 0.5 mm pitch, 4.5 mm x 3.5 mm x 0.75 mm body

パッケージバージョン	パッケージ名	マウント	端子位置	パッケージスタイル	外形寸法図	端子数	材料
SOT2283-1	FC-PQFN-COL24	surface mount	quad	FC-PQFN-COL	4.5 x 3.5 x 0.75	24	plastic

メーカーコード	参照コード	Issue Date
98ASA02280D

製品

パーツ	説明	Quick access
MPF5302BVNAAEP	Thermal enhanced - flip chip - plastic, quad flat non-lead, 24 terminals, 0.5 mm pitch, 3.5 mm x 4.5 mm x 0.75 mm body	View parametrics
MPF5302BVNA0EP	Thermal enhanced - flip chip - plastic, quad flat non-lead, 24 terminals, 0.5 mm pitch, 3.5 mm x 4.5 mm x 0.75 mm body	View parametrics
MPF5300BVNA0EP	Thermal enhanced - flip chip - plastic, quad flat non-lead, 24 terminals, 0.5 mm pitch, 3.5 mm x 4.5 mm x 0.75 mm body	View parametrics
MPF5301BVNA0EP	Thermal enhanced - flip chip - plastic, quad flat non-lead, 24 terminals, 0.5 mm pitch, 3.5 mm x 4.5 mm x 0.75 mm body	View parametrics
MPF5301BVNABEP	Thermal enhanced - flip chip - plastic, quad flat non-lead, 24 terminals, 0.5 mm pitch, 3.5 mm x 4.5 mm x 0.75 mm body	View parametrics
MPF5300BVNBREP	Thermal enhanced - flip chip - plastic, quad flat non-lead, 24 terminals, 0.5 mm pitch, 3.5 mm x 4.5 mm x 0.75 mm body	View parametrics
