SOT2172-1: VFBGA184

概要

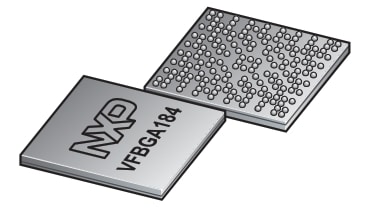

VFBGA184, very thin fine-pitch ball grid array package, 184 terminals, 0.5 mm pitch, 9 mm x 9 mm x 0.86 mm body

パッケージバージョン	パッケージ名	マウント	端子位置	パッケージスタイル	外形寸法図	端子数	材料
SOT2172-1	VFBGA184	surface mount	bottom	VFBGA	9 x 9 x 0.86	184	plastic

メーカーコード	参照コード	Issue Date
98ASA01888D		2021-12-21

製品

パーツ	説明	Quick access
MCXN236VDFT	MCX N23 Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security, 184 BGA	View parametrics
MCXN235VDFT	MCX N23 Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security, 184 BGA	View parametrics
MCXN547VDFT	MCX N54 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
MCXN247VDFT	MCX N24 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
MCXN527VDFT	MCX N52 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
MCXN526VDFT	MCX N52 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
MCXN546VDFT	MCX N54 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
MCXN537VDFT	MCX N53 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
MCXN536VDFT	MCX N53 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
MCXN947VDFT	MCX N94 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
MCXN946VDFT	MCX N94 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security	View parametrics
