Enhanced Time Processor Unit
eTPU アラートの受信
Visit the new CW eTPU Function Selector to create and download your eTPU function set based on new eTPU library functions and CodeWarrior® compiler.
Visit the eTPU Function Selector to download your eTPU functions from original set1, set2, set3 and set4.
The NXP® eTPU is a programmable I/O controller with its own core and memory system, allowing it to perform complex timing and I/O management independently of the CPU.
- The eTPU is essentially an independent MCU designed for timing control, I/O handling, serial communications, motor and engine control applications
- Enhancements include a more powerful processor, which handles high-level C code efficiently and allows for more functionality and increased performance
- NXP provides an eTPU functions library that is a superset of the standard TPU library functions; these, along with an available C compiler, make it easy to port older applications to the eTPU
ソフトウェア詳細

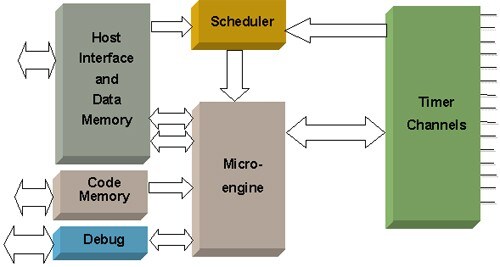

図
Features
General
-
General Timing Functions
- Full Featured and Synchronized PWM, Input Capture/Output Compare (Protected Output Compare), Pulse and Frequency Measurement, Pulse/Period Accumulate, Stepper Motor, Queued Output Match for Complex Outputs, GPIO
-
Communication Functions
- SPI, UART, UART with Flow Control, plus Proprietary Protocols
-
Motor Control Functions
- Stepper Motor, DC Motor, Brushless DC Motor, Permanent Magnet Synchronous Motor, and AC Induction Motor (including speed control), Current Control, Vector Control techniques
-
Engine Control Functions
- Engine Position, Spark and Dwell Time, Angle Toggle, Speed Measurement, Knock Window, Angle Toggle
- Event triggered RISC like processor and timer subsystem
- Up to 32 channels per module, with the possibility of multiple modules per device
- Double Action hardware timer channels (Input Capture/Output Compare)
- 24-bit hardware timer resolution
- Up to 64K bytes of code memory and 4K bytes data memory (actual amount implemented varies by product)
- Flexible allocation of data memory per function
- Angle mode support (provide angle reference for engine and motor control applications
- DMA and interrupt request support
- Debug support
LEGAL DISCLAIMER: Some eTPU Functions are preliminary releases and are not fully production tested. Please select the "Subscribe for Updates" button at the top of this page to receive all updates to this page, which will include library updates.
For information on eTPU Training courses, books, and other eTPU resources, please view the Related Links area.
