CodeWarrior® Development Studio for MPC55xx/MPC56xx (Classic IDE) v2.10

CW-MPC55XX_56XX

画像にカーソルを合わせると拡大表示されます。

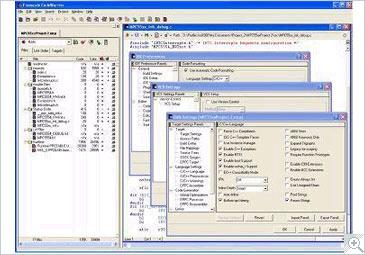

Our CodeWarrior® Development Studio for MPC55xx/MPC56xx v2.10 is a comprehensive development tool suite designed to enable embedded developers to meet the pressures of shorter project life cycles. CodeWarrior comes complete with IDE designed for each stage of the development process - from board bring-up through embedded application development, state-of-the-art debugging technology, the simplicity of an intuitive development environment and robust run-control raise hardware board bring-up and C/C++ embedded application development to a new level and take full advantage of the microcontroller selected for your design.

ソフトウェア詳細

セクションを選択:

Features

  • Classic IDE
  • Unlimited assembler
  • Unlimited C/C++ compiler and source-level debugger
  • P&E Flash Programmer and Debugger
  • Profiler
  • OSEK kernel-aware debugging
  • PC-lint plug-in support
  • Compiler exports optimization level as predefined macro
  • Compiler supports fused MAC instructions (efsmadd, efsmsub,...)
  • VLE compiler updates the base register of big structures to ensure the structure items’ offsets are within the range of 16-bit load/store instructions
  • Linker can be used to fill unused bytes with a defined byte pattern
  • The spe header file has been updated to be in sync with latest release of "Enhanced Signal Processing Extension and Embedded Floating-Point Version 2 Auxiliary Processing Units Programming Interface Manual"
  • Online help and documentation
  • Includes 12-month technical support
  • Free 30-day evaluation license available

対応製品

システム要件

PPCNEXUS third-party debug solutions

Specifications

  • IDE version: 5.9
  • Host platforms:
    • Microsoft® Windows® XP 32- and 64-bit (Professional Edition)
    • Vista® 32- and 64-bit (Business)
    • Vista 32-bit (Home Premium)
    • Microsoft Windows 7 32- and 64-bit (Professional Edition/Home Premium)
  • Language support:
    • Assembly
    • C/C ++
  • Build tools output formats:
    • ELF/DWARF 2.0
    • NXP S-Record
  • MPC55xx device support:
    • MPC5514E/G
    • MPC5515S
    • MPC5516E/G/S
    • MPC5517E/G/S
    • MPC5533
  • MPC56xx device support:
    • MPC5601D/P
    • MPC5602B/C/P
    • MPC5603B/C/P
    • MPC5605B
    • MPC5606B/S
    • MPC5607B
    • MPC5632M
    • MPC5633M
    • MPC5634M
    • MPC5643L
    • MPC5645S
    • MPC5646C
    • MPC5644A/B/C
    • MPC5645B/C/S
    • MPC5646B/C
    • MPC5668E/G
    • MPC5645S
    • MPC5674F
    • MPC5675K

ダウンロード

フィルタ

1 ダウンロード

  • 開発IDEと構築ツール

    CodeWarrior Development Studio for MPC55xx/MPC56xx (Classic IDE)

    FLEXERA改訂 AllJan 27, 2022 12:54:001 KBCWX-MPC-5500P-EX
    ダウンロード

注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。

ドキュメンテーション

クイック・リファレンス ドキュメンテーションの種類.

フィルタ

1-5 の 26 ドキュメント

全て表示

設計・リソース

セクションを選択:

ハードウェア

フィルタ

2 ハードウェア提供

サポート

お困りのことは何ですか？?

検索

ライセンスと登録サポート

ハウツー・ビデオ（ライセンス）

    License Manager Installers

    These downloads contain the necessary software to install the FLEXlm license manager.  The license manager software should be installed on the license server machine which will facilitate floating licenses for your NXP product.

    Please locate below the appropriate download for your license server machine.  If you are not sure, you should consult with your license server administrator.

    Below is a table that outlines which Operating System versions we officially support and test with our license manager.
    NOTE: Any installation or use outside of this scope will not be officially supported.


    Installer Versions Supported
     Windows  Win2003, Win2008, Win7, Win 8, Win 10
     Windows Server  2019, 1903, 1909, 20H2
     Linux   Red Hat EP v5.x, Red Hat EP v6.x, SUSE 11 Ubuntu 12.04

    USB Dongle Drivers

    These downloads are applicable for using a USB dongle to license your NXP product. You should receive documentation within your USB dongle kit that has detailed instructions for getting your product up and running with a license tied to the dongle. These downloads along with the most recent Dongle QuickStart Guide are listed below for your convenience.
