S32K144 and NCx3340 Automotive NFC Add-On Board
NCX3340S32KEVB アラートの受信
NXP's NCx3340 Automotive-Qualified NFC Controller with NCI Interface is equipped with embedded firmware. The compact, fully NFC Forum-compliant NCx3340 controller enables easy integration of NFC functionality into embedded systems of a car via the NCI interface.

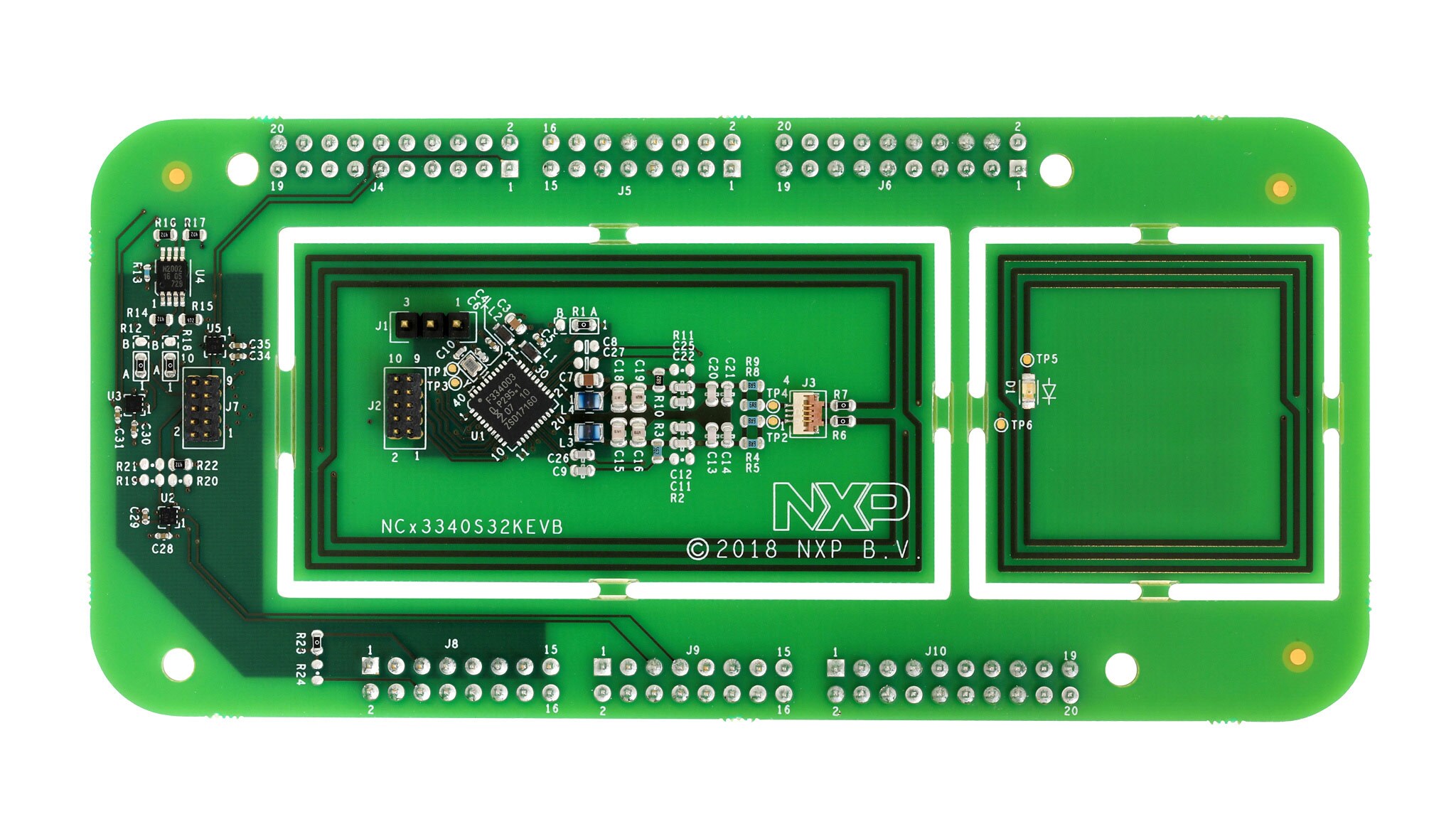

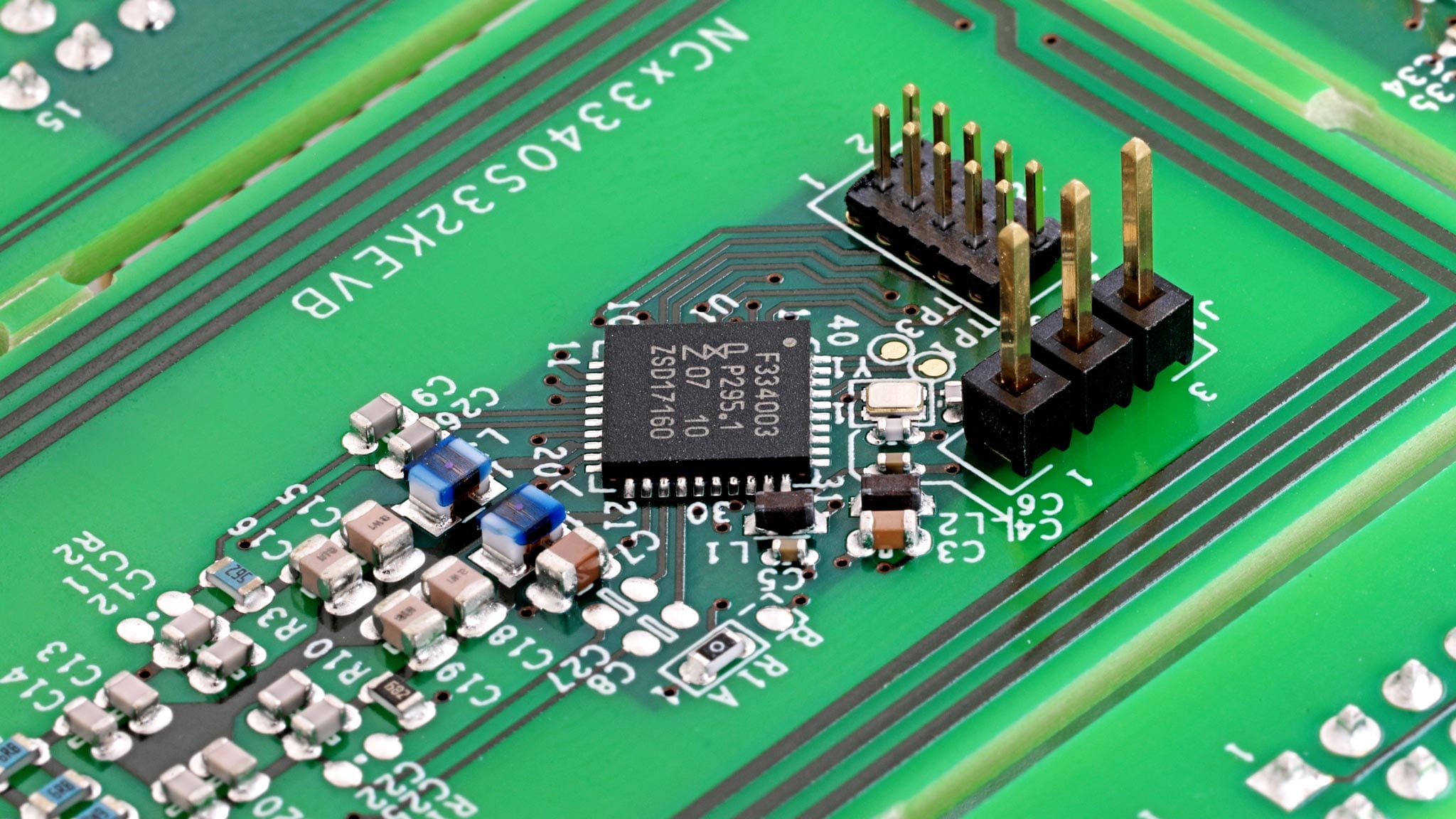

The small form factor NCx3340 board is designed to fit the Arm®-based S32K144 EVB. It offers a low-cost evaluation and development platform for quick application and demonstration prototyping for the S32K144 MCU and the NCx3340 full NFC controller.
Please send an email to automotive_nfc@nxp.com to request demo board and product support packages.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
S32K 車載汎用MCU
- S32K1: S32K1 車載向け汎用マイクロコントローラ
セキュリティ＆認証
セキュア・カーアクセス
- NCF3340AHN: Automotive Qualified NFC Controller with NCI Interface
- NCx3320: Automotive-Grade NFC Frontend IC
Features
Processor
- Internal oscillator for 27.12 MHz crystal
- Integrated PLL unit for use with an external reference clock
Power Management
- An integrated power management unit
- Voltage supply: 2.3 to 5.5 V
- Autonomous mode when the host is shut down
- Automatic wake-up via RF field and an internal timer
Support
- Supports Reader/Writer mode with multiple protocols incl. ISO/IEC 14443 A/MIFARE, ISO/IEC 14443 B, FeliCa, and ISO/IEC 15693
- Supports Passive and Active Peer to Peer mode with full NFCIP-1 and NFCIP-2 compliance
- Supports Card Emulation mode in accordance with ISO/IEC 14443 A and FeliCaSupported host interfaces: SPI bus, I²C bus, NCI protocol interface according to NFC Forum NCI standardization
