FlexGUI: Software Tool for Evaluation of Reference Design Kits

FLEXGUI-SW

動画の上をクリックすると再生されます。

FlexGUI is a Graphical User Interface (GUI) software tool enabling easy and intuitive configuration and control of analog ICs on their evaluation boards. It can be installed on any Windows 7, 8 or 10 based operating system and runs on Java 8. It uses a USB port to interface with the evaluation boards. These boards include a small MCU to interface with the analog ICs via standard peripherals such as SPI, I²C, GPIO, ADC, or timers. FlexGUI supports several different ICs which can be selected via the application launcher at start-up.

ソフトウェア詳細

セクションを選択:

Features

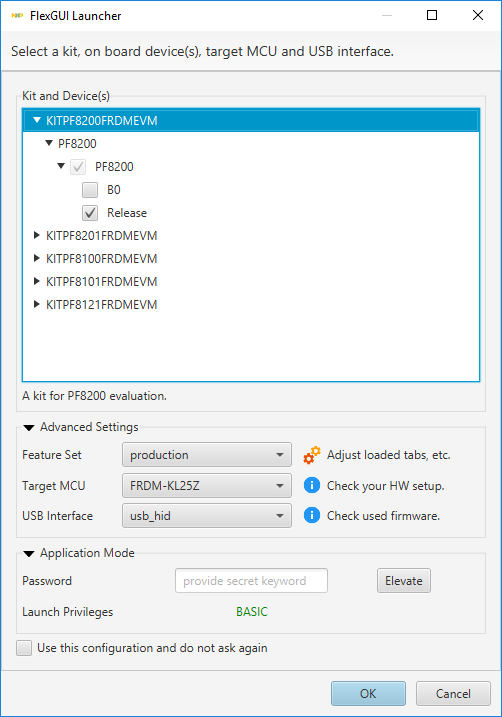

Application Launcher

  • Kit, device models, and revisions selection
  • USB CDC or USB HID selection
  • MCU selection

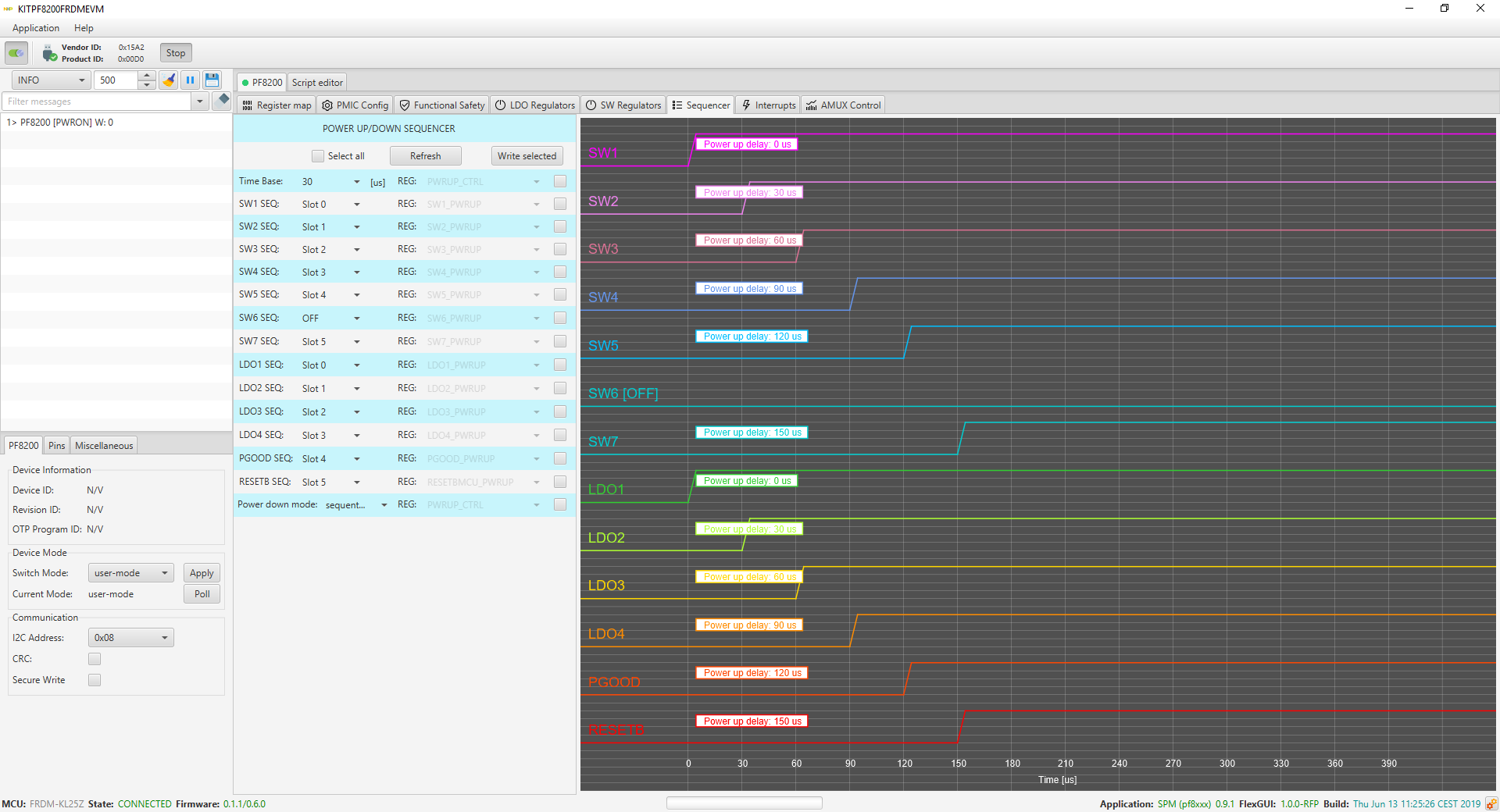

Application Workspace

  • Session logs for communication history
  • Device panel for quick access to device modes, in/out pins and bus address/frequency settings
  • Script editor for sequences of actions on pins and registers
  • Script generator for sharing current register values wrapped around by custom script snippets

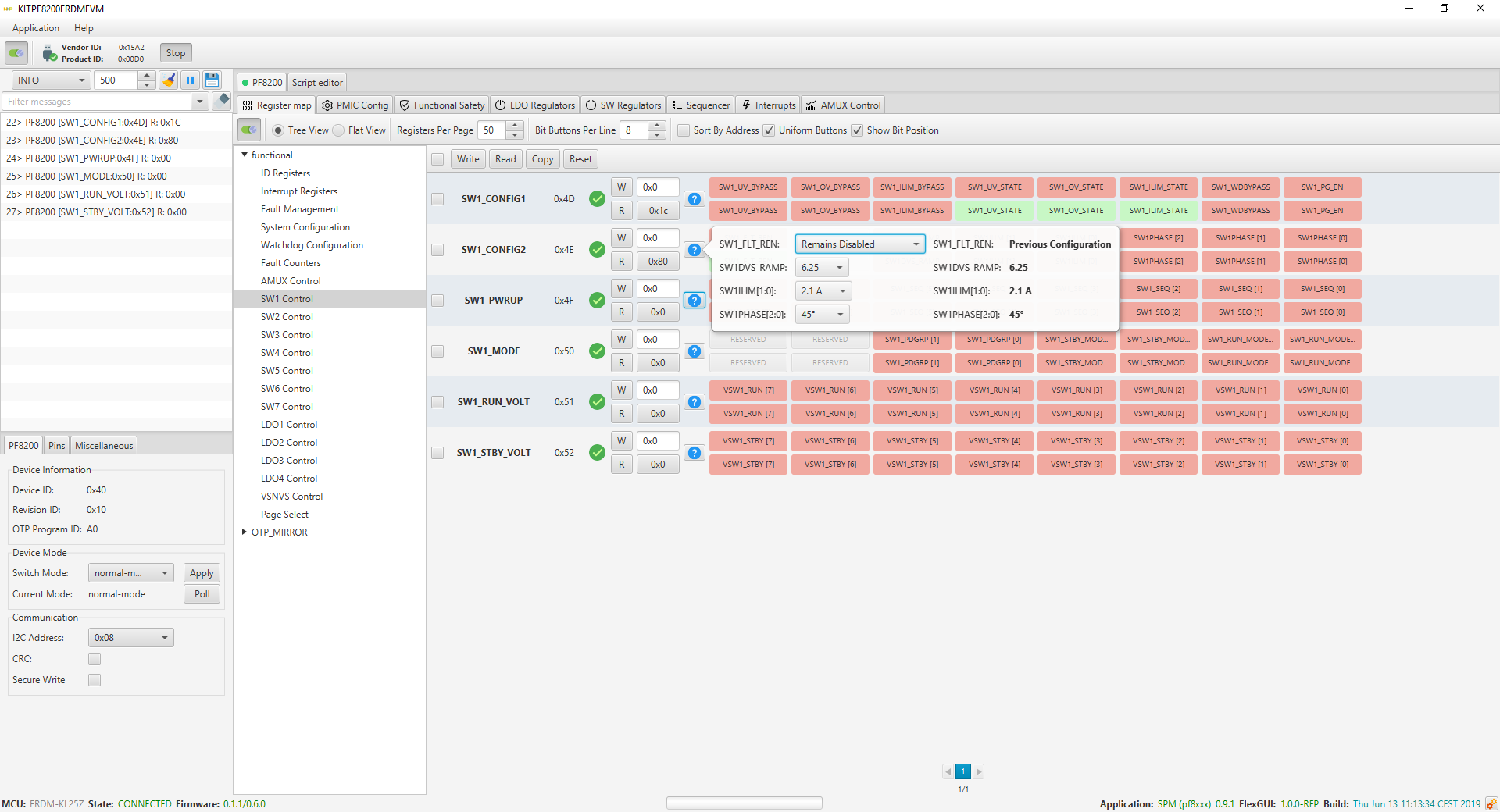

  • Register map for r/w registers with value hints

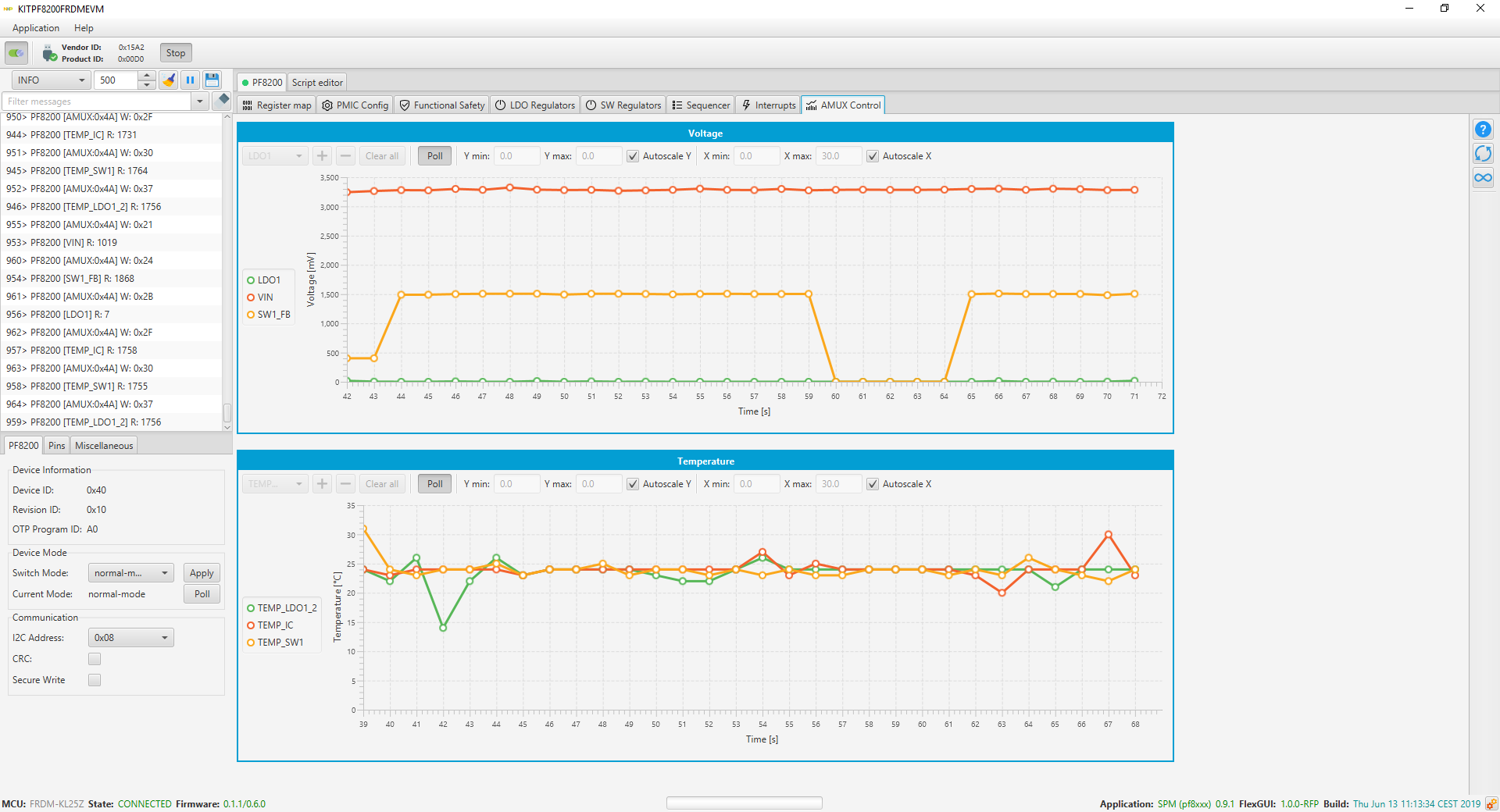

  • Custom tabs for device-specific features, for example, programming, measurements, etc.

Supported MCUs

  • KL25Z, K82F, S32K144

Requirements

  • FlexGUI v1.0 - compatible with Windows 7, Windows 8 and Windows 10
  • Java Run Time Environment 8

対応製品

  • PF8100-PF8200: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications
  • FS8500: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL D
  • FS8400: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
  • PF8101-PF8201: 9-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications

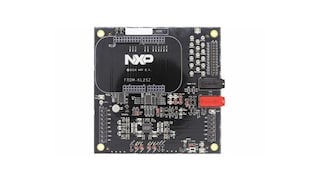

  • PF8121: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Consumer Applications

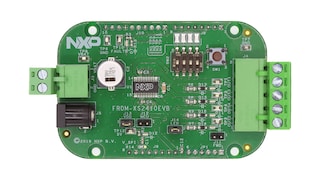

  • XS2410: Quad 100 mΩ / Dual 50 mΩ, 3.0 V to 60 V High-Side Switch
  • GD3100: Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs
  • GD3160: Advanced High Voltage Isolated Gate Driver with Segmented Drive for SiC MOSFETs

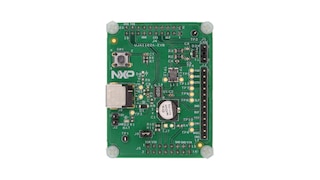

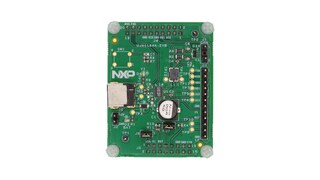

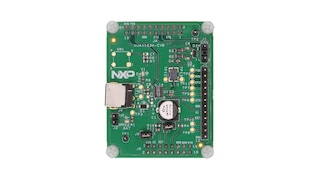

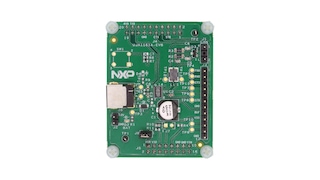

  • UJA1164ATK: Mini High-Speed CAN System Basis Chip with Standby Mode and Watchdog

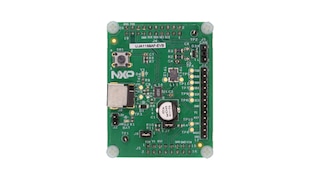

  • UJA1168ATK: Mini High-Speed CAN System Basis Chip for Partial Networking
  • TJA1145A: High Speed CAN Transceiver with Partial Networking, CAN FD Data Rates up to 5 Mbit/s

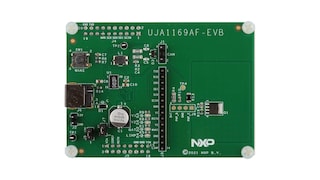

  • UJA1169ATK: Mini High-Speed CAN System Basis Chip
  • GD3162: Advanced High Voltage Isolated Gate Driver with Dynamic Gate Strength Control
