Proximity Sensing Software Evaluation Add-on Kits for MCUs
TSSELECTRODEEVM アラートの受信
The Touch Sensing Software (TSS) transforms NXP 8-bit S08, and 32-bit ColdFire® V1 MCUs into touch sensors, giving designers the flexibility to select from more than 650 NXP MCUs to add cost-effective touch sensing functionality to their human-machine interface (HMI) designs.

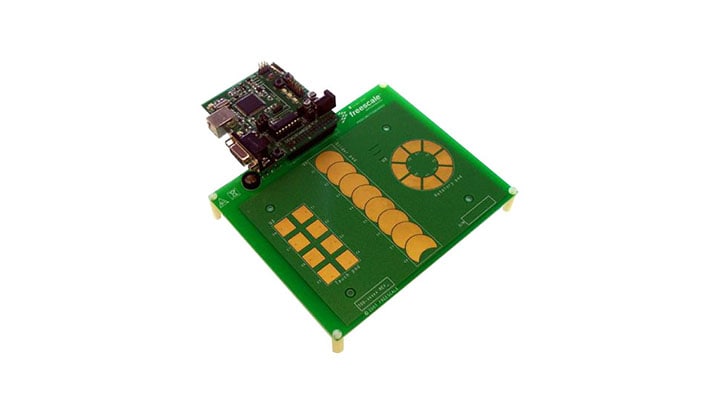

The NXP TSSELECTRODEEVM is a full featured development kit containing a plug-in touch sensor module allowing the evaluation of rotary, touch pad and slider touch sensing technologies, using the Touch Sensing Software, to get your design up and running quickly and easily.
ソフトウェア詳細
Features
- Fits a standard header (MCU port)
- Versatile touchpad designs
- Rotary, Touch, Slider
- Plug-in touchpad modules
- PC-Based GUI
- Benefits
- Touch added to one chip solution to reduce the overall system cost and size
- Enables all 8-bit S08 and 32-bit ColdFire® V1 MCUs as touch sensors
- Free license software with low cost development tools
- Enhances reliability by eliminating mechanical wear and tear
- Reduces time to market and development costs
- Increases lifetime of products
ダウンロード
2 ダウンロード
-
プリント基板と回路図
TSSELECTRODEEVM Schematics
-
ソフトウェア開発リソース
Touch Sensing Software Suite installer 2.6
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
1-5 の 8 ドキュメント
-
ファクト・シート
NXP Touch-Sensing Software - Fact Sheet注目
-
アプリケーション・ノート
Migration to TSS 2.0注目
