Freedom Development Platform for Kinetis® KW2x MCUs

FRDM-KW24D512

画像にカーソルを合わせると拡大表示されます。

Note: this page is made avaialble for historical reference only.

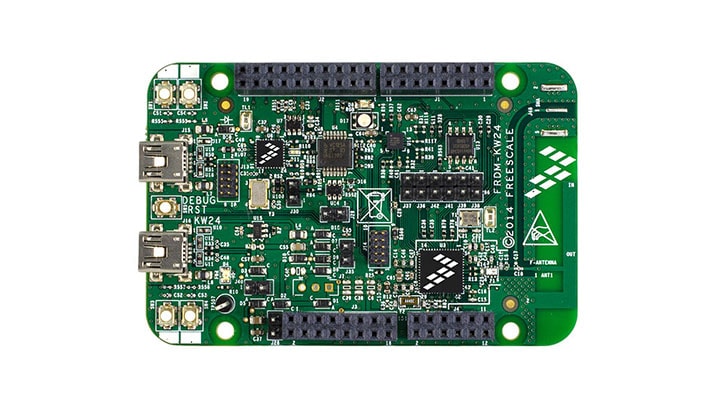

The FRDM-KW24D512 is a development platform based on the Our MKW24D512 Kinetis® W Series microcontroller and is enabled by software support for Thread, ZigBee Pro, 802.15.4 MAC, SMAC and Kinetis Software Development Kit (SDK). The FRDM-KW24D512 kit contains two boards, enabling point-to-point out of the box connectivity.

Kinetis MKW24D512 MCU is a low-power, compact integrated device consisting of a high-performance 2.4 GHz IEEE 802.15.4 compliant radio transceiver and a powerful Arm® Cortex®-M4 core system with connectivity and precision mixed-signal analog peripherals.

FRDM-KW24D512 evaluation boards are designed to work either in standalone mode or as part of the Freedom development platforms for quick application prototyping. They are fully supported by a comprehensive enablement environment.

製品詳細

セクションを選択:

対応製品

ワイヤレス・コネクティビティ

Thread

  • KW2xD: Kinetis® KW2xD-2.4 GHz 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M4 Core

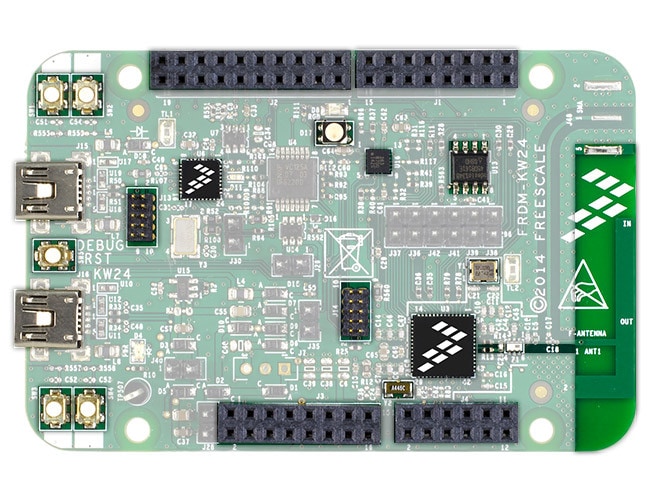

Features

  • Supports MKW24D512 Kinetis® microcontroller (up to 50 MHz Cortex-M4 MCU, 512 kB Flash)
  • Full IEEE 802.15.4 compliant wireless node
  • Software support: Thread, ZigBee Pro, 802.15.4 MAC, and SMAC, Kinetis Software Development Kit (SDK)
  • Reference design area with small footprint, low-cost RF node:
    • RF circuitry includes a Balun to convert the differential input/output pin of the MKW24D512 transceiver to single-ended for onboard signal routing
    • Low off-chip component count
    • Programmable output power from –35 dBm to +8 dBm at the SMA connector, no trap
    • Receiver sensitivity: –102 dBm, typical
  • Integrated PCB inverted F-type antenna and SMA RF port
  • Selectable power sources
  • 32 MHz reference oscillator
  • 32 kHz clock oscillator
  • 2.4 GHz frequency operation (ISM Band)
  • External serial flash for over-the-air programming (OTAP) support
  • Multiple push buttons and LEDs
  • OpenSDA debug interface
  • Combo sensor, 6-axis sensor with integrated linear accelerometer and magnetometer

Recommended Software and Tools

Kinetis Design Studio IDE

Kinetis MKW2xD and MCR20A Connectivity Software

Note: Although MCUXpresso SDK does include support for MKW2xD and FRDM-KW24D512, it does not include any connectivity software. For a complete SDK with included Connectivity Stacks please use the Kinetis MKW2xD and MCR20A Connectivity Software which supports Kinetis Design Studio and IAR Embedded Workbench.

Thread Networking Protocol

Thread Networking Protocol An ideal way to connect and control products around the home

購入オプション

  • FRDM-KW24D512

  • Freedom Development Board for Kinetis KW21D, KW22D and KW24D MCUs.

    • 2 FRDM-KW24D512 Freedom Development Boards
    • Quick Reference Card
    • 2 USB Cables
  • JP¥28,700
  • の数量に対して 1
代理店から購入する
